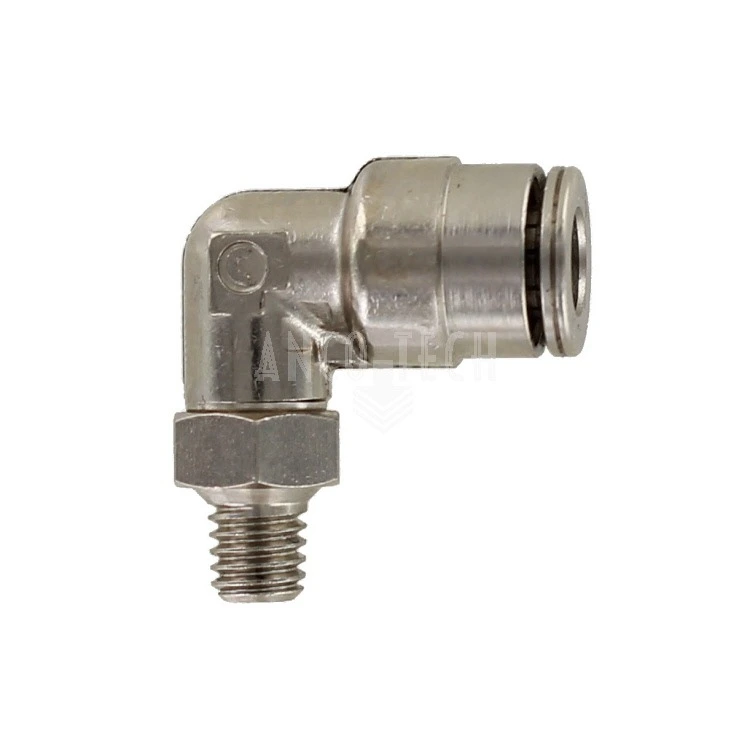

ELBOW PUSH-IN CONNECTOR WEDKM6 M6x1 ROTATABLE
SKU
1142270
Elbow push-in connector rotatable WEDKM6 M6x1
Developed for use in automated lubrication applications in combination with PA tube or high pressure hose with thread sleeve and hose stud with Quicklinc™ or SKF claw groove.
Stock quantity: 315
€9.47
Elbow push-in connector rotatable WEDKM6 M6x1 226-14157-3

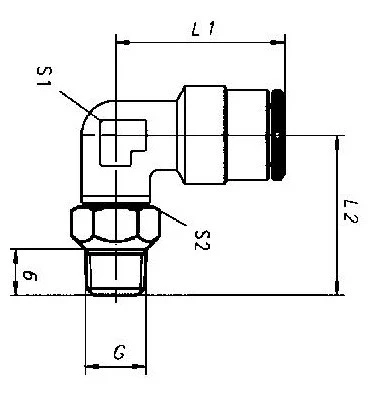

| Quicklinc™ Push-in connector | |
| Model | WEDKM 90° Angled Rotatable |
| Material | Nickel-plated brass |
| Diameter | Ø 6 mm |
| Thread size G | M6 x 1.0 |
| HEX size S1 | 10 mm |
| Length L1 | 22 mm |
| Height L2 | 21 mm |
| Thread Length | 6 mm |
| Lincoln Reference | 226-14157-3 |
| Replacement for | 226-13756-7 |
