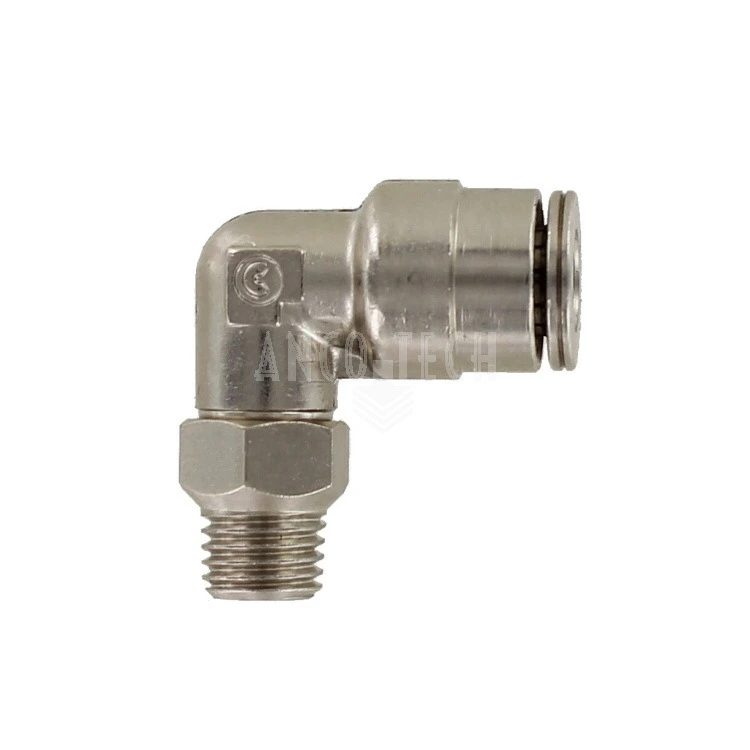

ELBOW PUSH-IN CONNECTOR WEDKM 6 M8x1 ROTATABLE
SKU
1142260
Elbow push-in connector WEDKM 6 M8x1
Developed for use in automated lubrication applications in combination with PA tube or high pressure hose with thread sleeve and hose stud with Quicklinc™ or SKF claw groove.
Stock quantity: 385
€8.87
Elbow push-in connector WEDKM 6 M8x1 226-14157-1

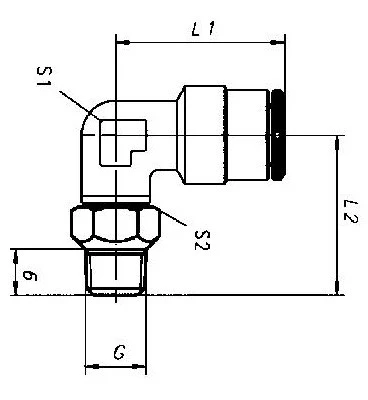

| Quicklinc™ Push-in connector | |
| Model | WEDKM 90° Angled |
| Material | Nickel-plated brass |
| Diameter | Ø 6 mm |
| Thread size G | M8 x 1.0 |
| HEX size S1 | 10 mm |
| Length L1 | 22 mm |
| Height L2 | 21 mm |
| Thread Length | 6 mm |
| Lincoln Reference | 226-14157-1 |
| Replacement for | 226-13756-4 |
| Stock Status | In Stock |
|---|
