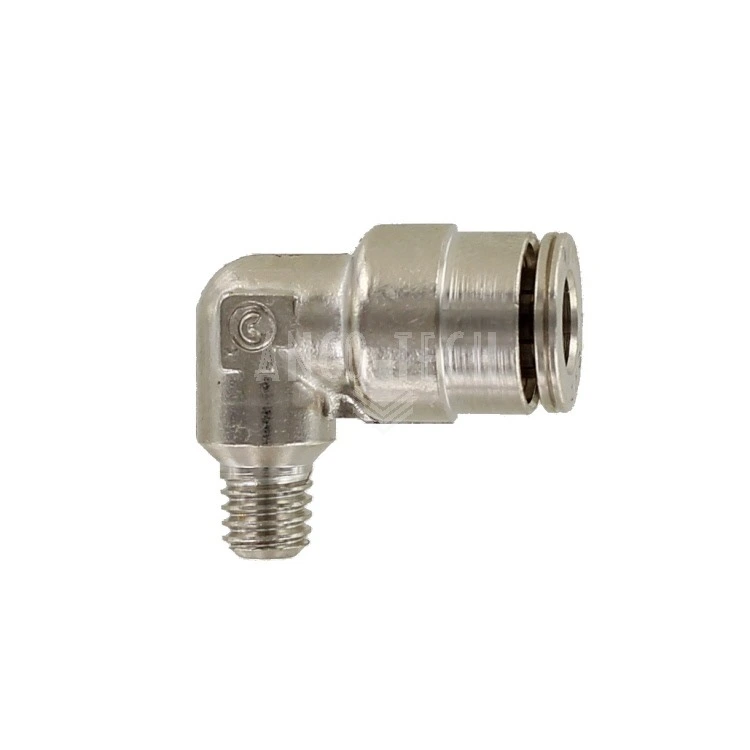

ELBOW PUSH-IN CONNECTOR WEKM 6 M6x1
SKU
1142245
Elbow push-in connector WEKM 6 M6x1 reinforced
Developed for use in automated lubrication applications in combination with PA tube or high pressure hose with thread sleeve and hose stud with Quicklinc™ or SKF claw groove.
Stock quantity: 238
€7.37
Elbow push-in connector WEKM 6 M6x1. 226-14123-4

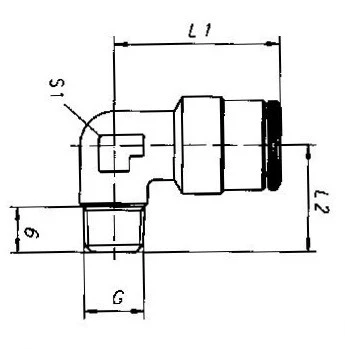

| Quicklinc™ Push-in connector | |
| Model | WEKM 90° Angled |
| Material | Nickel-plated brass |
| Diameter | Ø 6 mm |
| Thread size G | M6 x 1.0 |
| HEX size S1 | 10 mm |
| Length L1 | 22 mm |
| Height L2 | 15 mm |
| Thread Length | 6 mm |
| Lincoln Reference | 226-14123-4 |
| Replacement for | 226-13753-7 |
