PROGRESSIVE DISTRIBUTOR SSVD 12/11 - V1

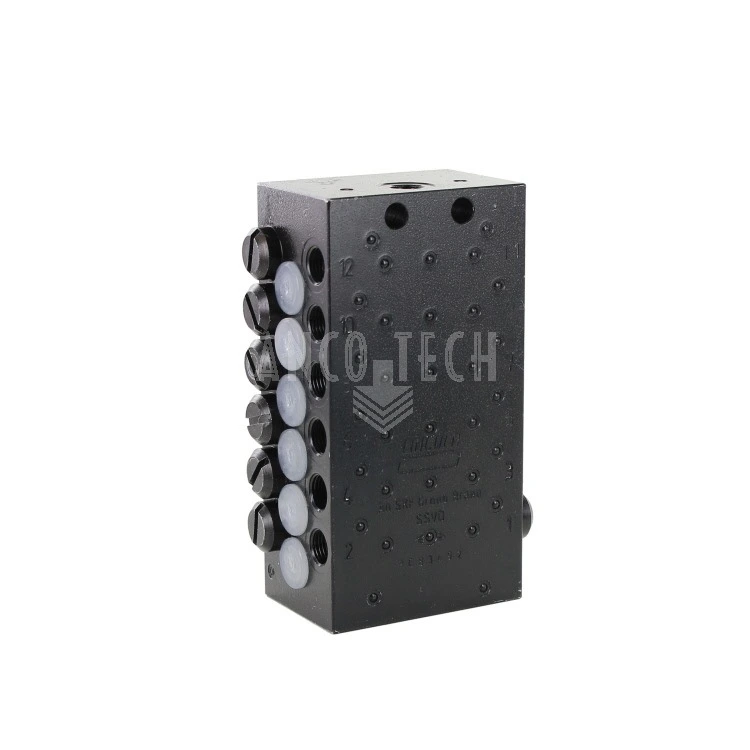

Lincoln progressive distributor model SSVD 12/11-V1
11 Exhausts.
This distributor has an open connection between outlet 1 & 2, where outlet 1 is closed. This makes it possible to obtain a distribution block with an odd number of outlets. Pay attention to the choice of the dosing screw for outlet 1&2. This gives double the output at outlet 2.
Caution! Order 6 dosing screws from this distributor.
For correct operation, only use the SSV couplings with brass cone.
Material: Steel Black Zinc Plated.
Important! Exhaust number 1 & 2 may not be closed both.
Lincoln progressive divider SSVD | |
Model | SSVD 12/11-V1 |
Material | Steel Black Galvanized |
Number of outlets | 11 |
Exhaust connection | M10 x 1.0 Use SSV links v.z.v. Brass cone |
Inlet connection | 1/8 Gas |

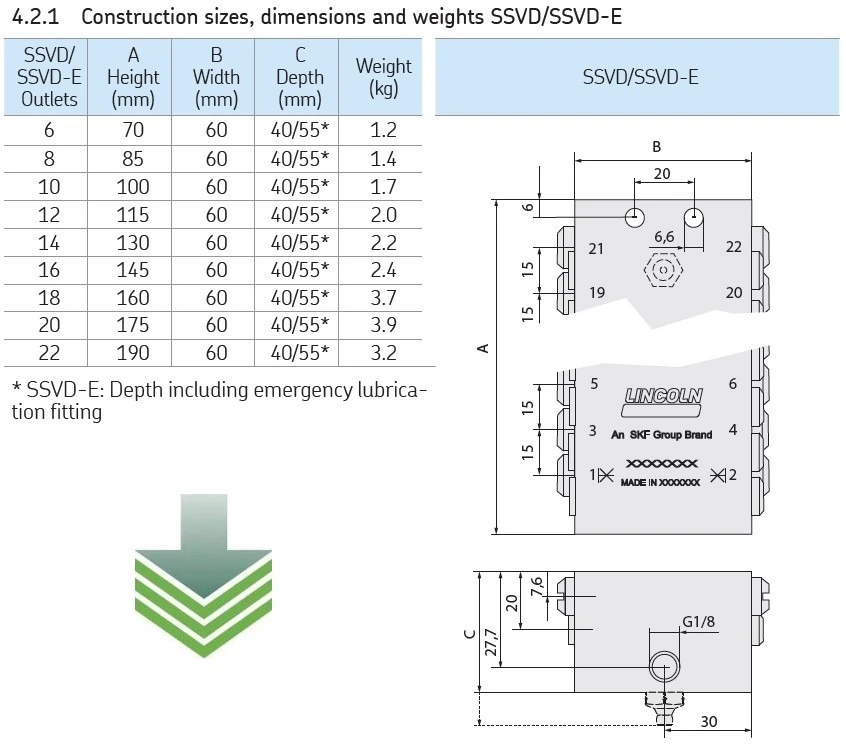

Length A | 115mm |
Revenue per outlet | 0.08 to 1.8 cc depending on dosing screw used |
Temperature range | -25 to +70°C |
Lincoln Reference | 649-29493-1 |
