METERING DEVICE SSVD 8/7-V1
SKU
1043510

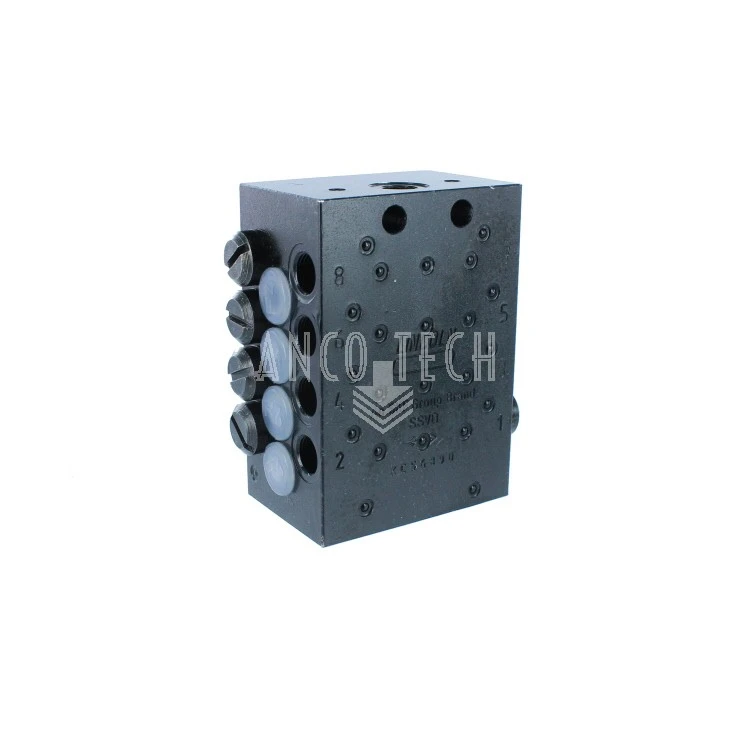

Lincoln metering device model SSVD 8/7-V1
7 outlets.
The divider has a crossport between outlet 1 & 2, 1 is closed by default. It is possible to assemble a divider with an uneven number of outlets.
Attention! Order 4 metering screws along with this metering device.
Use SSV connectors with brass cone only.
Material: Zinc plated black.
Important! Outlet 1 & 2 may not be closed at the same time.
Stock quantity: 7
€280.00
Lincoln metering device SSVD | |
Model | SSVD 8/7-V1 |
Material | Zinc plated black |
Outlets | 7 |
Connection outlet | M10 x 1.0 Use SSV connectors with brass cone only |
Connection inlet | 1/8 Gas |

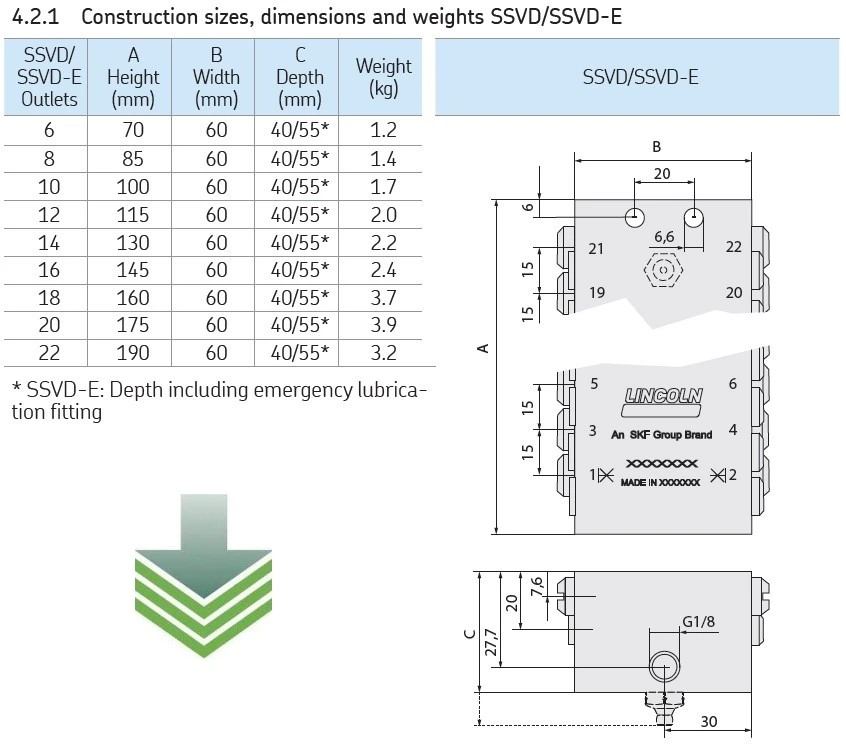

Length A | 85 mm |
Metering quantity per outlet | 0,2 cc per cycle |
Temperature range | -25 to +75°C |
Lincoln Reference | 649-29491-1 |
