METERING DEVICE SSVD 8
SKU
1043410

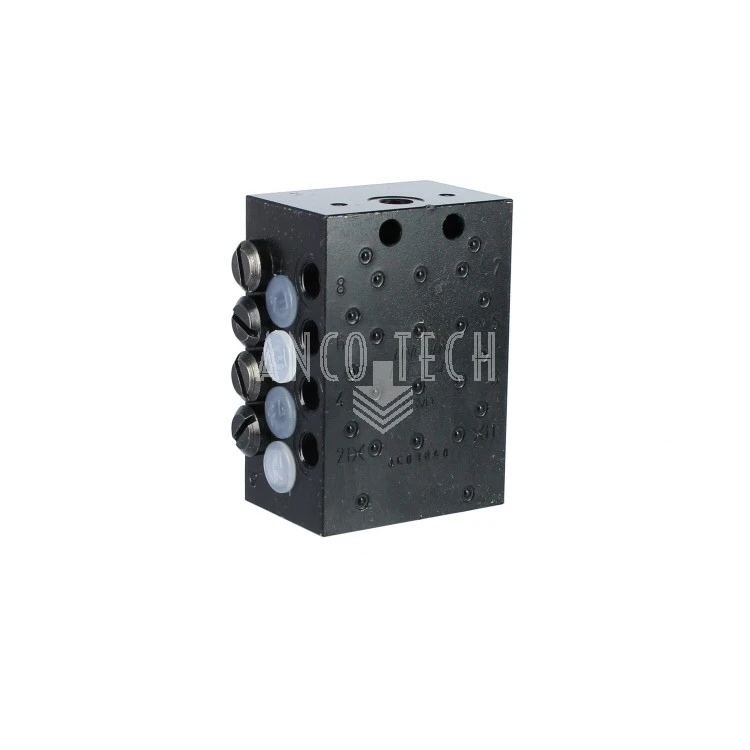

Lincoln metering device model SSVD8
8 outlets.
Attention! Order 4 metering screws along with this metering device.
Use SSV connectors with brass cone only.
Material: Zinc plated black.
Important! Outlet 1 & 2 may not be closed.
Stock quantity: 15
€215.72
Lincoln metering device model SSVD 8
Lincoln Metering Device SSVD | |
Model | SSVD 8 |
Material | Zinc plated black |
Outlets | 8 |
Connection outlet | M10 x 1.0 Use SSV connectors with brass cone only |
Connection inlet | 1/8 Gas |

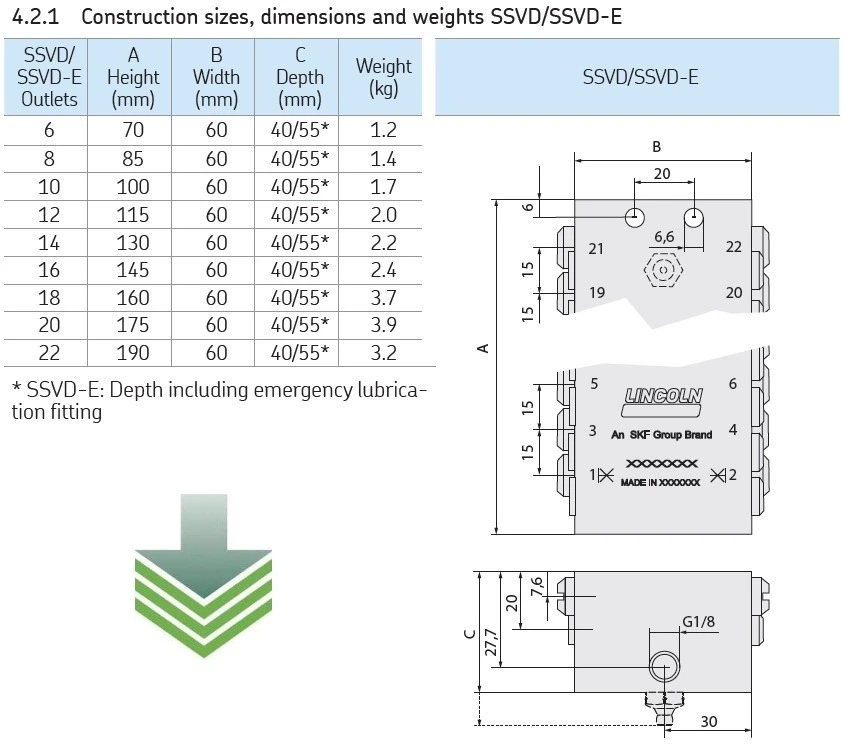

Length A | 85 mm |
Metering quantity per outlet | 0,2 cc per cycle |
Temperature range | -25 to +70°C |
Lincoln Reference | 649-29486-1 |
Manufacturer | Lincoln |
---|
