METERING DEVICE SSVD 6/5 V1 K
SKU
1043705

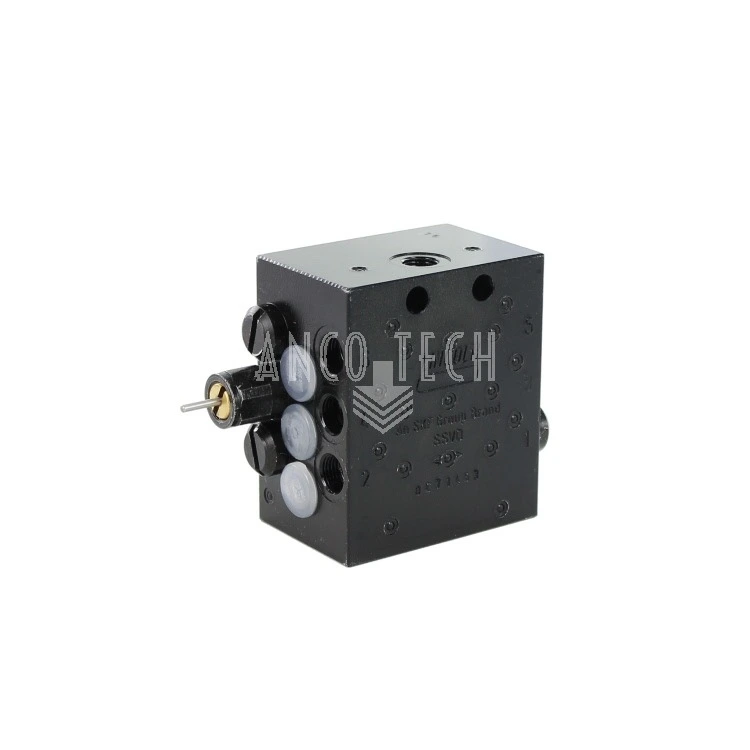

Lincoln metering device with indicator pin model SSVD 6/5-V1 K
5 outlets.
Attention! Order 3 metering screws
Use SSV connectors with brass cone only.
Material: Zinc Plated Black.
Important! Outlet number 1 & 2 may not be closed.
Stock quantity: 1
€316.00
Lincoln metering device SSVD - K with cycle indicator pin | |
Model | SSVD 6/5-V1 K |
Material | Zinc plated black |
Outlets | 5 |
Connection outlet | M10 x 1.0 Use SSV connectors with brass cone |
Connection inlet | 1/8 Gas |

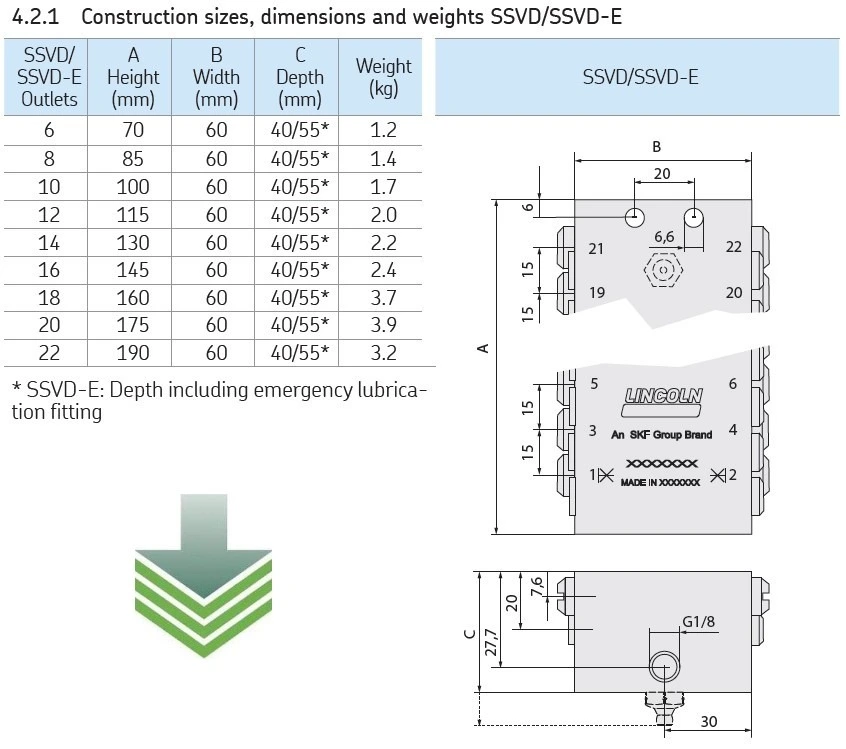

Length | 70 mm |
Metering quantity per outlet | 0,08 tot 1,8 cc depending on metering screw |
Temperature range | -25 to +70°C |
Lincoln Reference | 649-29510-1 |
