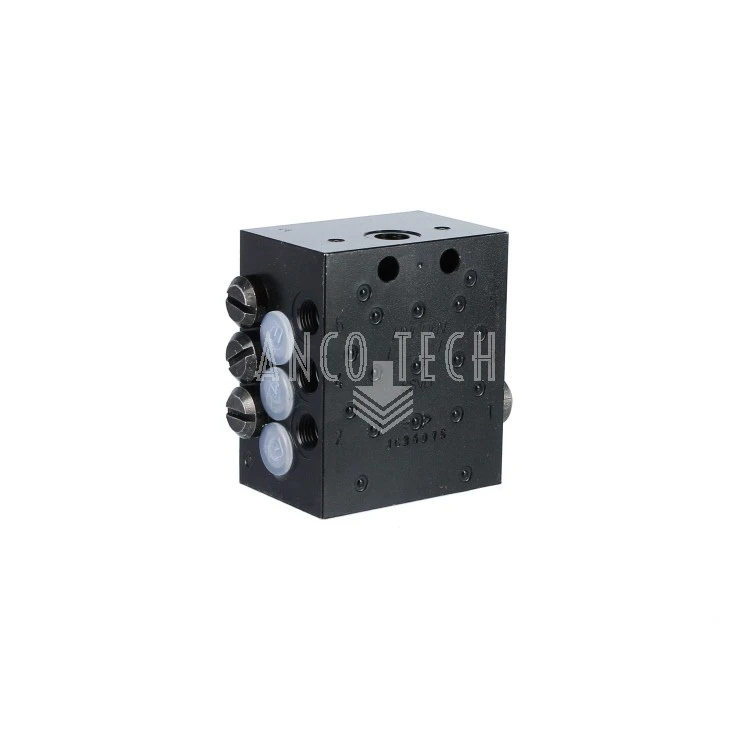

Lincoln metering device model SSVD 6/5-V1
| Lincoln metering device SSVD | |
| Model | SSVD 6/5-V1 |
| Material | Zinc plated black |
| Outlets | 5 |
| Connection outlet | M10 x 1.0 Use SSV connectors with brass cone only |
| Connection inlet | 1/8 Gas |

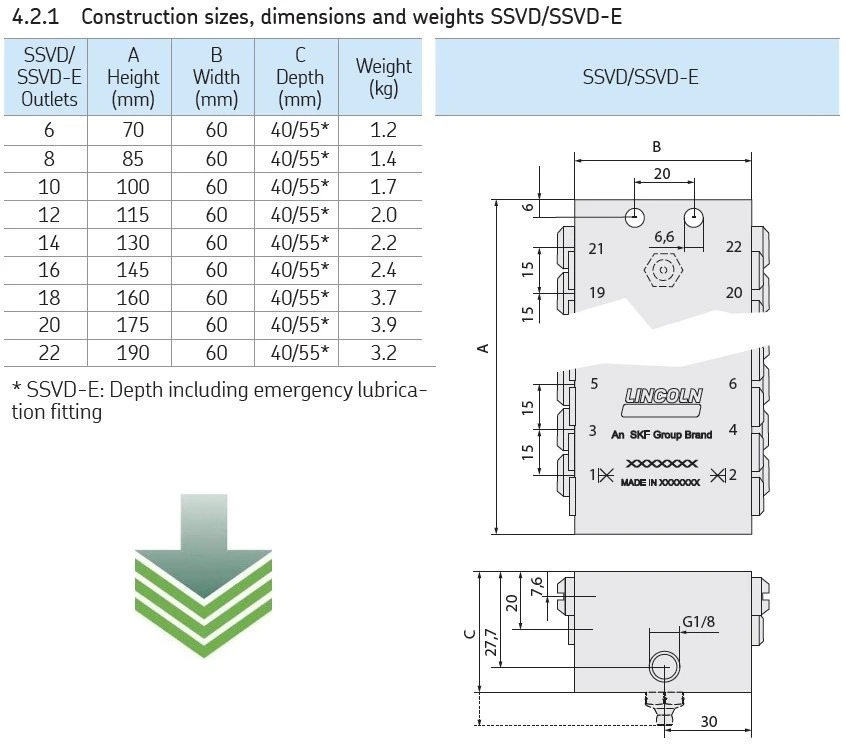

| Length A | 70 mm |
| Metering quantity per outlet | 0,2 cc per cycle |
| Temperature range | -25 to +75°C |
| Lincoln Reference | 649-29490-1 |
Specifications
- SKU 1043505
- HS Code 84799070
- Lincoln Referentie 649-29490-1
- Type progressief verdeler SSVD
- Materiaal verdeler Steel Zinc plated
