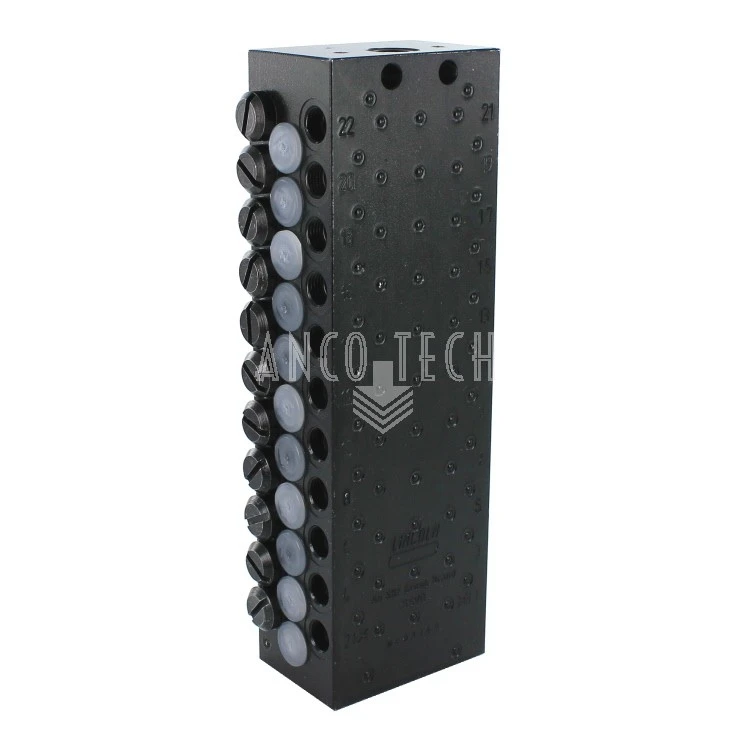

| Lincoln Metering Device SSVD | |
| Model | SSVD 22 |
| Material | Zinc plated black |
| Outlets | 22 |
| Connection outlet | M10 x 1.0 Use SSV connectors with brass cone only |
| Connection inlet | 1/8 Gas |

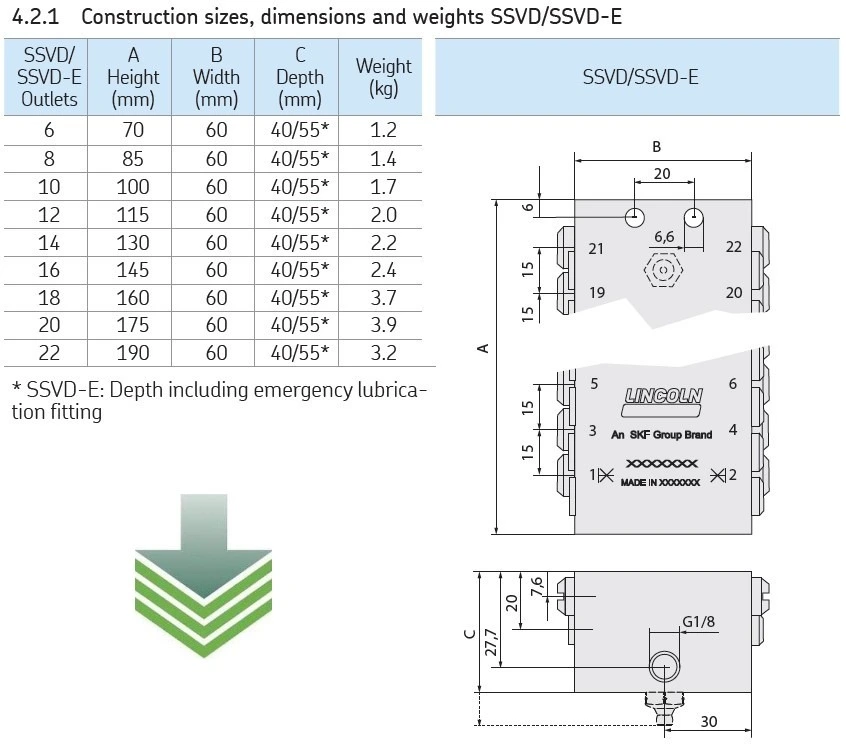

| Length A | 190 mm |
| Metering quantity per outlet | 0,2 cc per cycle |
| Temperature range | -25 to +70°C |
| Lincoln Reference | 649-29590-1 |
Specifications
- SKU 1043445
- HS Code 84799070
- Lincoln Reference 649-29590-1
- Type of progressive divider SSVD
- Divider material Steel Zinc plated
