METERING DEVICE SSVD 14/13-V1

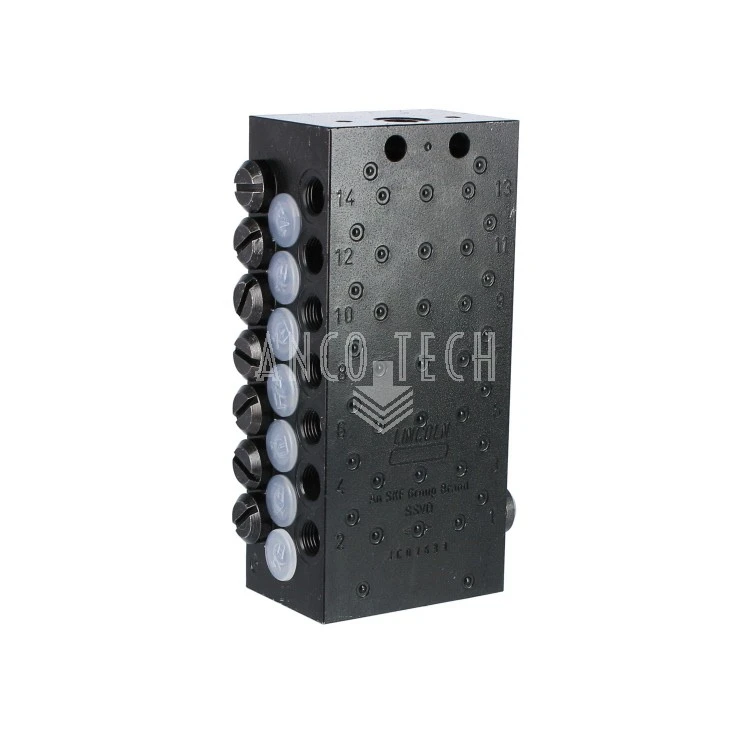

Lincoln metering device model SSVD 14-13-V1
The divider has a crossport between outlet 1 & 2, 1 is closed by default. It is possible to assemble a divider with an uneven number of outlets.
Attention! Order 7 metering screws along with this metering device.
Use SSV connectors with brass cone only.
Material: Zinc plated black.
|Lincoln metering device SSVD|
|Material||Zinc plated black|
|Connection outlet||M10 x 1.0 Use SSV connectors with brass cone only|
|Connection inlet||1/8 Gas|

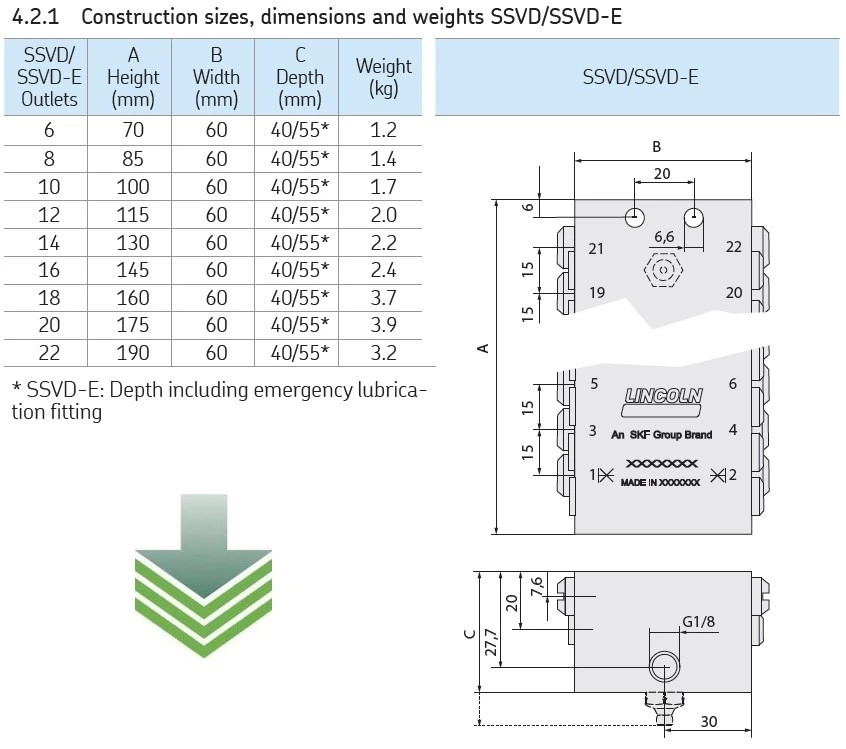

|Length A||130 mm|
|Metering quantity per outlet||0,2 cc per cycle|
|Temperature range||-25 to +75°C|
