METERING DEVICE SSVD 12 K
SKU
1043620

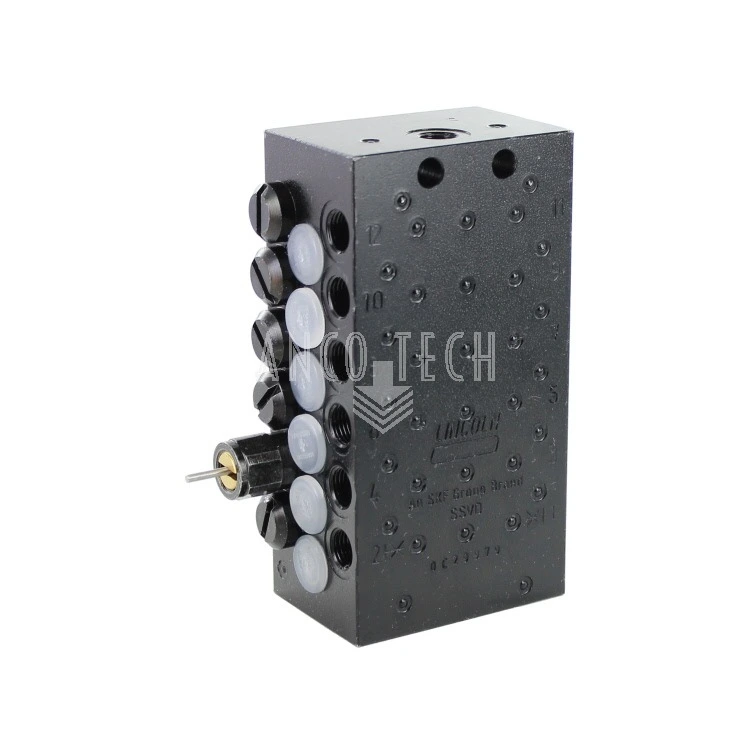

Lincoln metering device with indicator pin model SSVD12K
12 outlets.
Attention! Order 6 metering screws
Use SSV connectors with brass cone only.
Material: Zinc Plated Black.
Important! Outlet number 1 & 2 may not be closed.
Stock quantity: 1
€347.00
Lincoln metering device SSVD-K with cycle indicator pin | |
Model | SSVD 12 K |
Material | Zinc plated black |
Outlets | 12 |
Connection outlet | M10 x 1.0 Use SSV connectors with brass cone |
Connection inlet | 1/8 Gas |

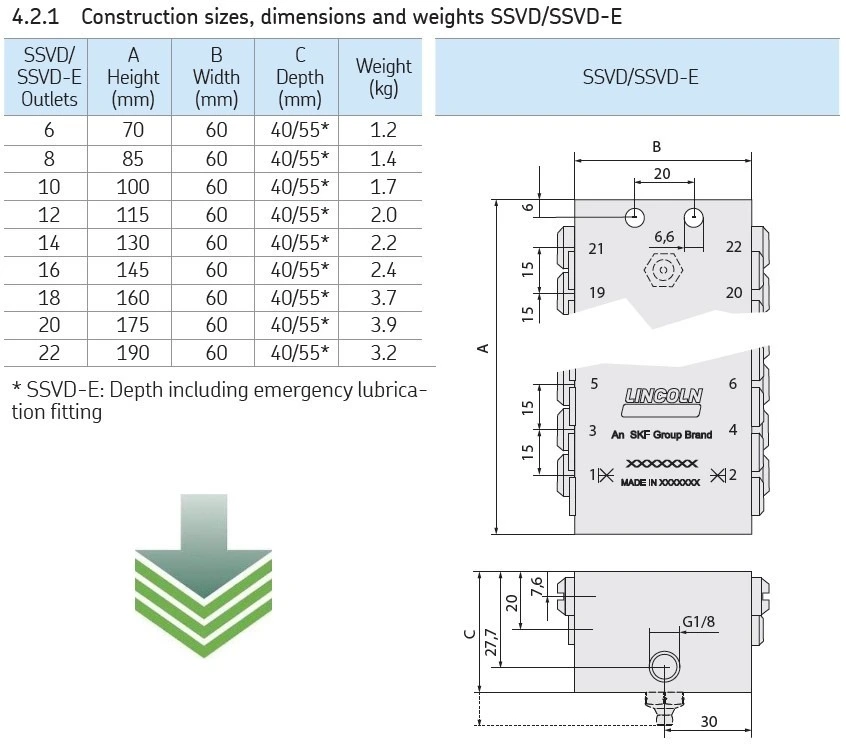

Length A | 115 mm |
Metering quantity per outlet | 0,08 tot 1,8 cc depending on metering screw |
Temperature range | -25 to +70°C |
Lincoln Reference | 649-29508-1 |
