METERING DEVICE SSVD 12
SKU
1043420

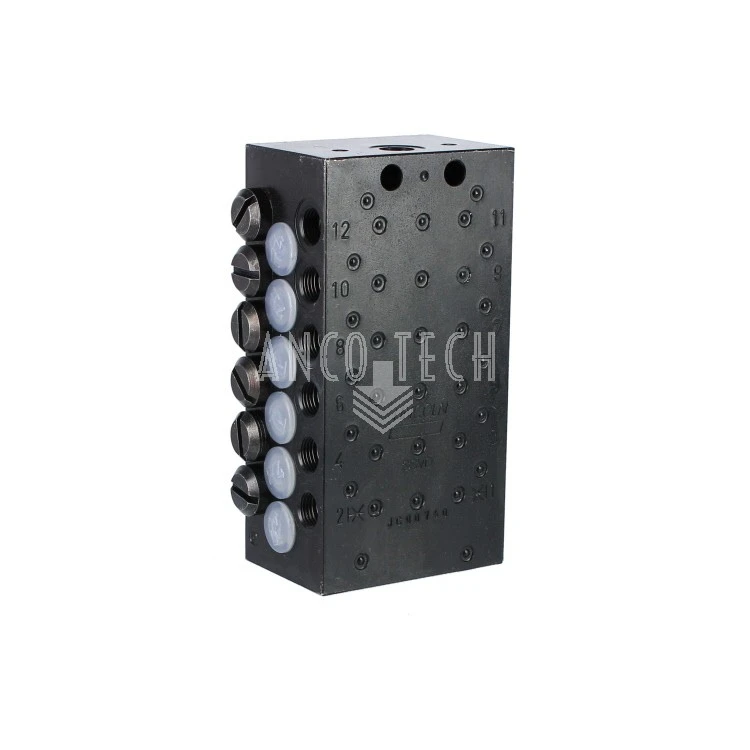

Lincoln metering device model SSVD12
12 outlets.
Attention! Order 6 metering screws along with this metering device.
Use SSV connectors with brass cone only.
Material: Zinc plated black.
Important! Outlet 1 & 2 may not be closed.
Stock quantity: 15
€284.00
Lincoln metering device model SSVD 12
Lincoln Metering Device SSVD | |
Model | SSVD 12 |
Material | Zinc plated black |
Outlets | 12 |
Connection outlet | M10 x 1.0 Use SSV connectors with brass cone only |
Connection inlet | 1/8 Gas |

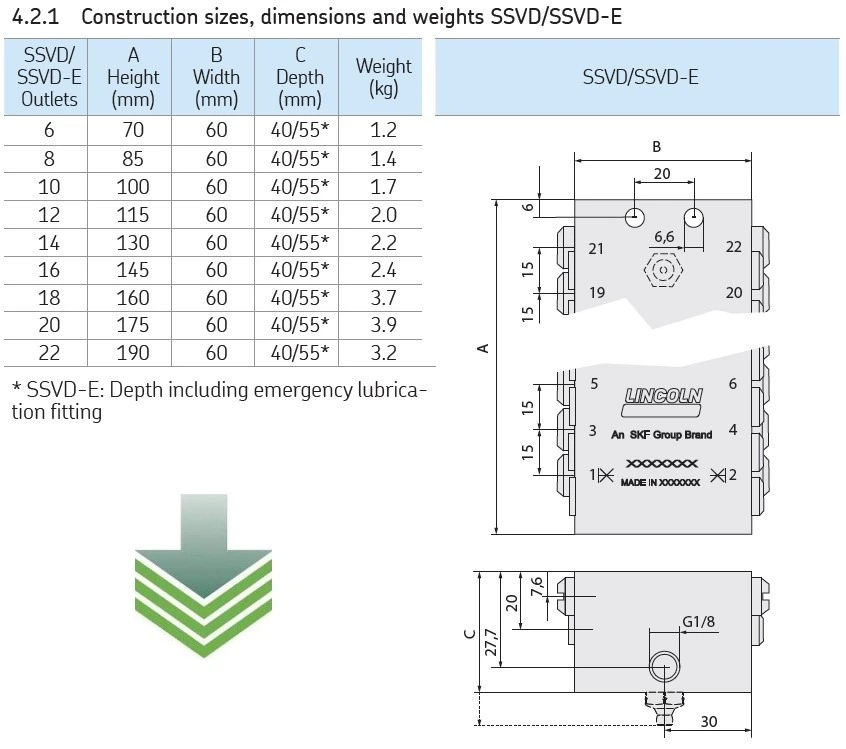

Length A | 115 mm |
Metering quantity per outlet | 0,2 cc per cycle |
Temperature range | -25 to +70°C |
Lincoln Reference | 649-29488-1 |
