METERING DEVICE + SENSOR SSVD 6-N
SKU
1043905

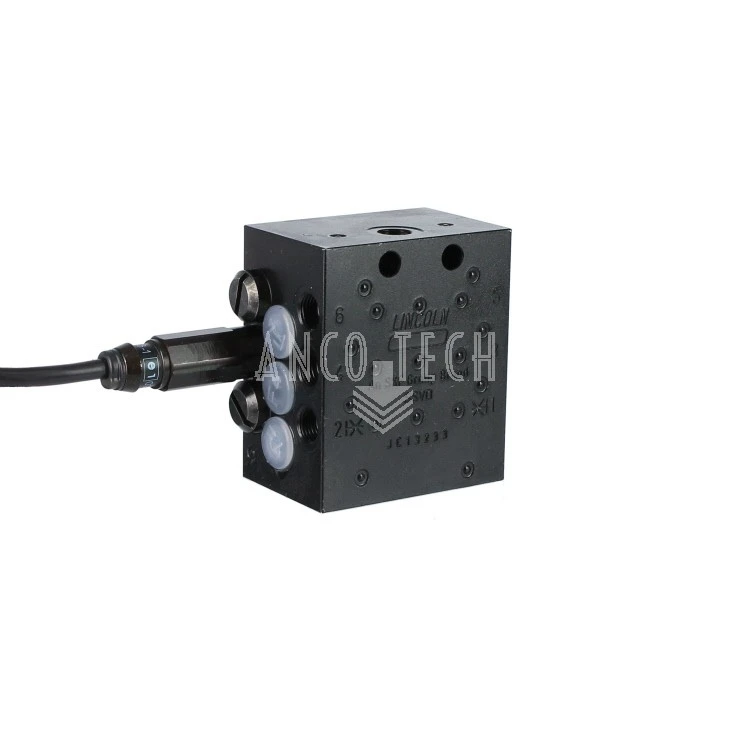

Lincoln metering device model SSVD 6-N
This divider with sensor makes it possible to monitor the supply of grease. The sensor wil make contact every time the divider has made a complete lubrication cycle.
6 outlets.
Attention! Order 3 metering screws along with this metering device.
Use SSV connectors with brass cone only.
Material: Zinc plated black.
Important! Outlet 1 & 2 may not be closed.
Stock quantity: 12
€744.30
Related Products
Lincoln metering device model SSVD 6-N
| Lincoln metering device SSVD including Sensor | |
| Model | SSVD 6 N |
| Material | Zinc plated black |
| Outlets | 6 |
| Connection outlet | M10 x 1.0 Use SSV connectors with brass cone only |
| Connection inlet | 1/8 Gas |

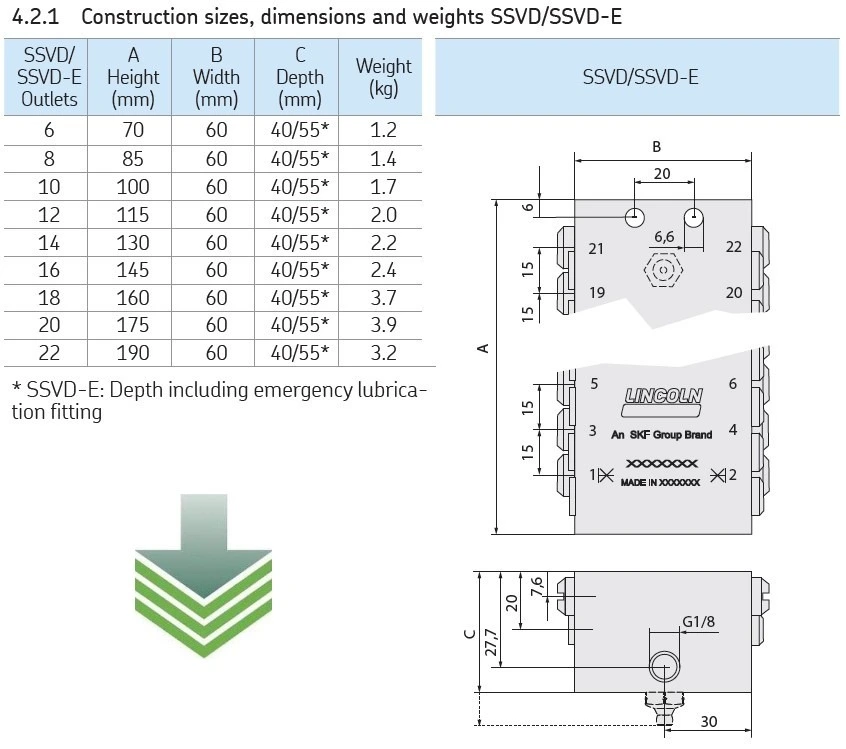

| Length A | 70 mm |
| Metering quantity per outlet | 0,2 cc per cyclus |

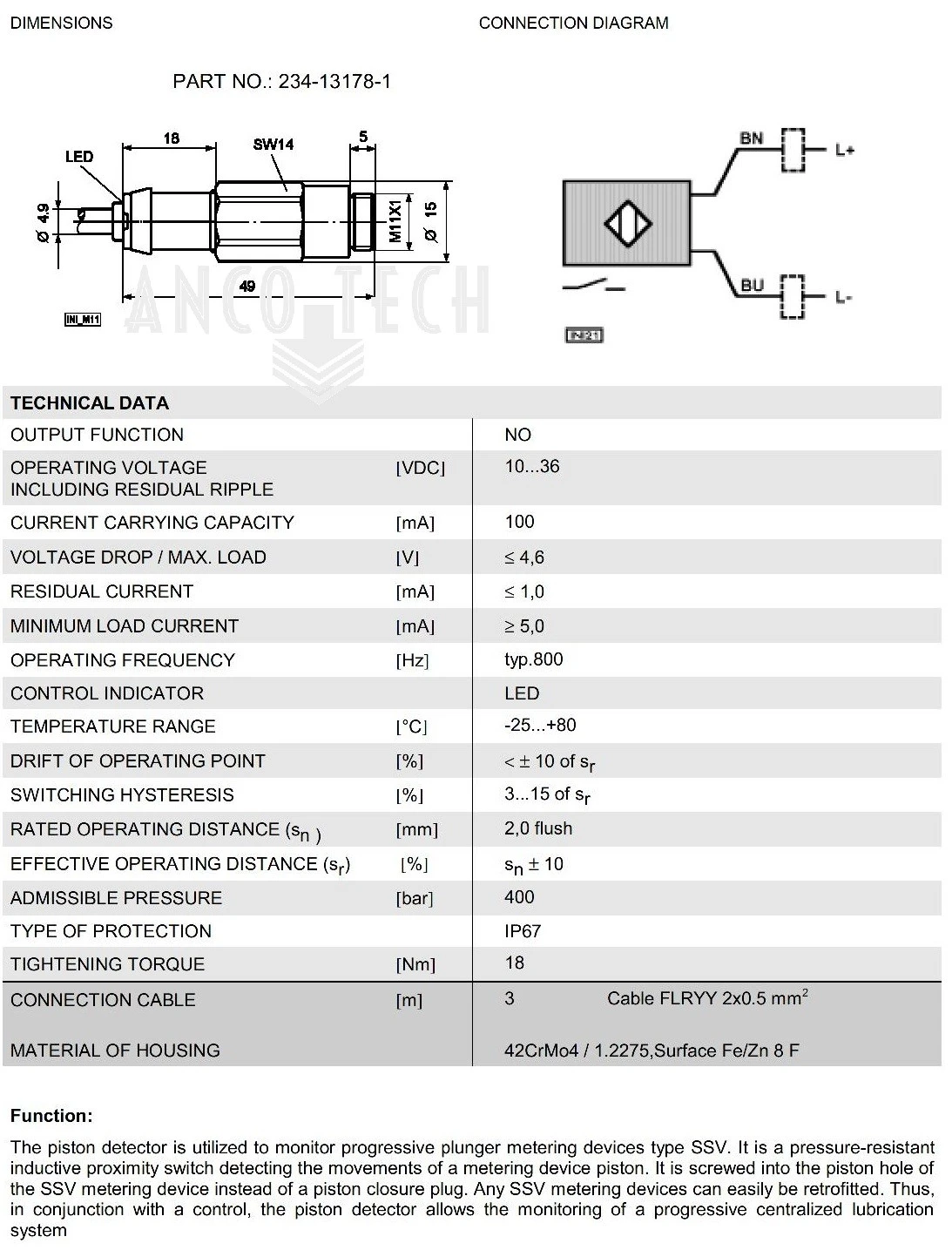

| Sensor | NO 10-36VDC + LED (234-13163-9) |
| Temperature range | -25 tot +75°C |
| Lincoln Reference | 649-29495-1 |
