METERING DEVICE + SENSOR SSVD 6/5-V1-N

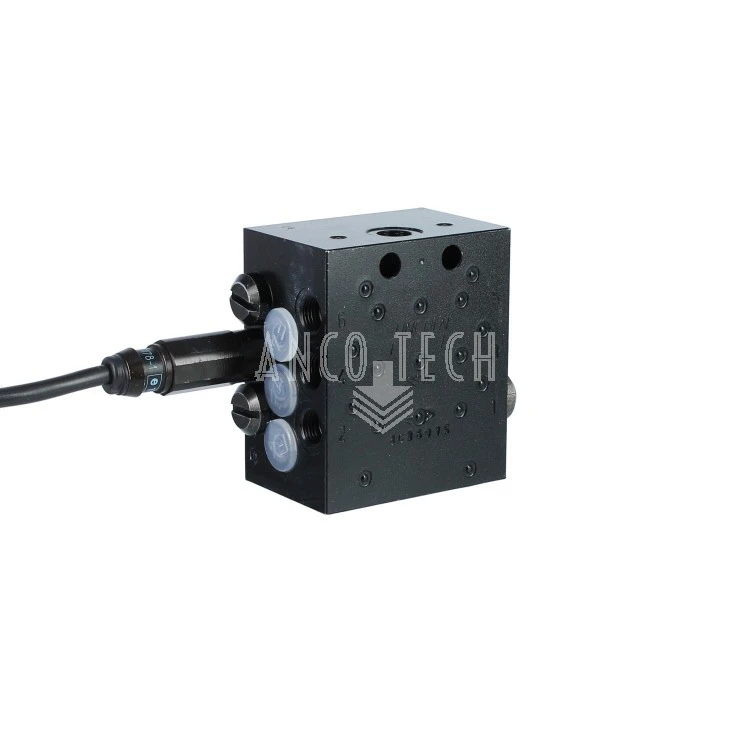

Lincoln metering device with sensor model SSVD 6/5-V1-N
This divider with sensor makes it possible to monitor the supply of grease. The sensor wil make contact every time the divider has made a complete lubrication cycle.
5 outlets.
Attention! Order 5 metering screws along with this metering device.
Use SSV connectors with brass cone only.
Material: Zinc plated black.
Lincoln metering device with sensor model SSVD 6/5-V1-N
Lincoln metering device SSVD including sensor | |
Model | SSVD 6/5-V1 N |
Material | Zinc plated black |
Outlets | 5 |
Connection outlet | M10 x 1.0 Use SSV connectors with brass cone only |
Connection inlet | 1/8 Gas |

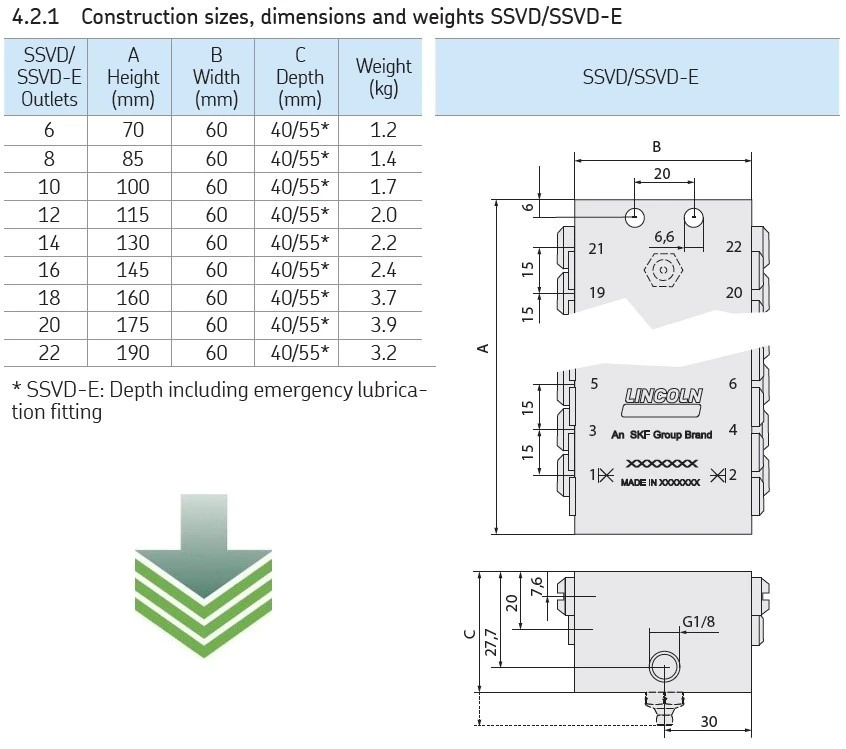

Length A | 70 mm |
Metering quantity per outlet | 0,2 cc per cycle |

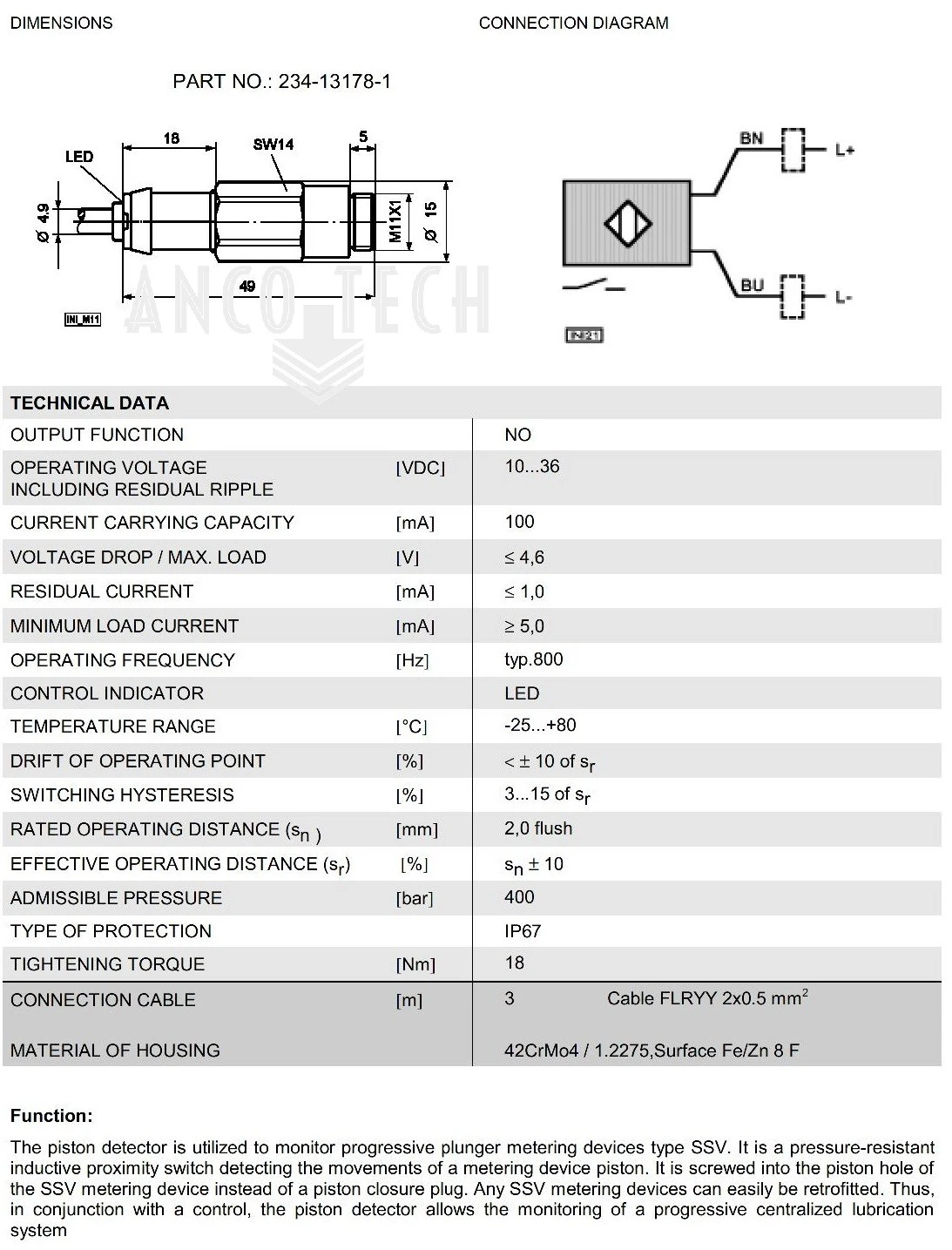

Sensor | NO 10-36VDC + LED (234-13163-9) |
Temperature range | -25 to +75°C |
Lincoln Reference | 649-29500-1 |
