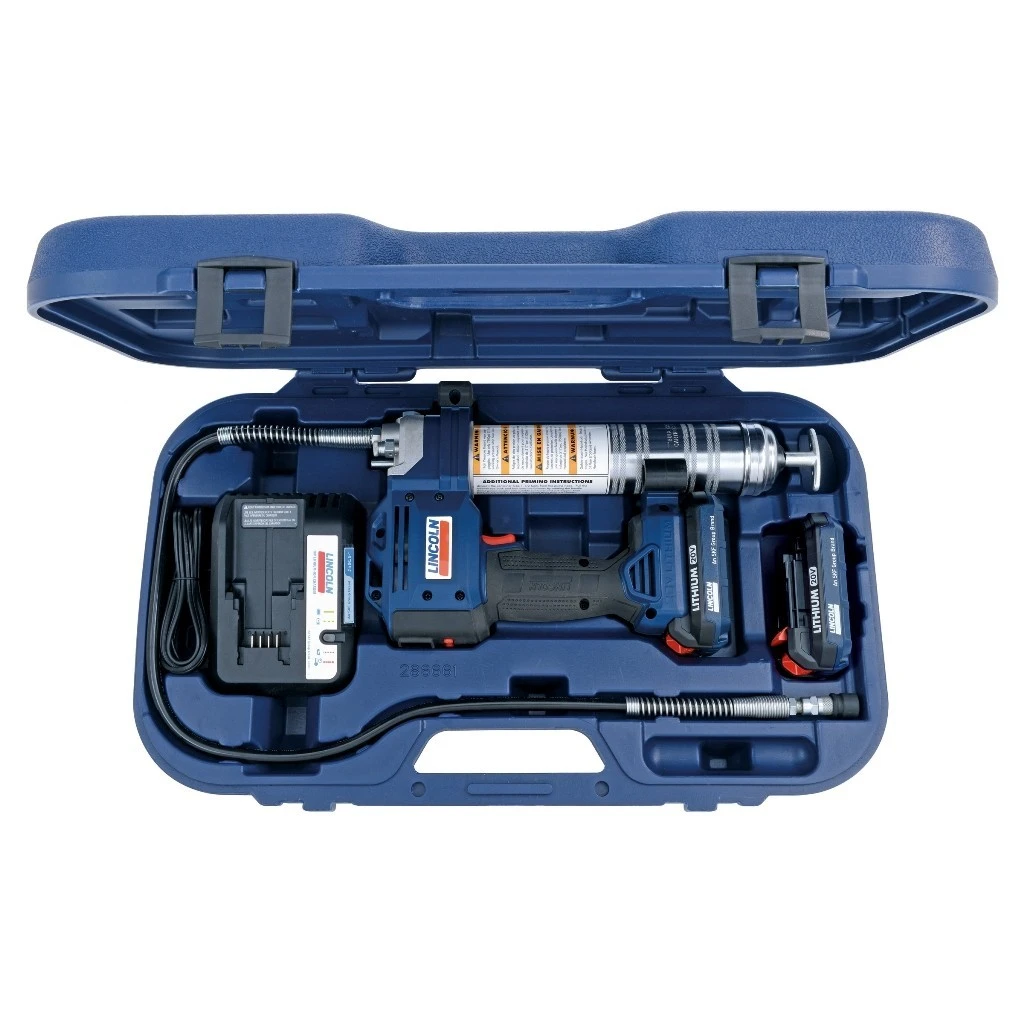

LINCOLN Cordless Grease Gun 20V 1884E
A completely redesigned PowerLuber with an improved pump body that allows it to reach a maximum pressure of 689 bar. Featuring the latest 20V 2.5Ah Lithium Ion battery technology, this PowerLuber delivers top performance for the most demanding applications.
- Ergonomic design. Easily stands on a 3-point support.
- Electronically controlled motor with 2 speeds
- Lighter in weight than its predecessors
- With integrated grease delivery meter
- Automatic LED light at the front of the unit
- Extra-long hose 915 mm

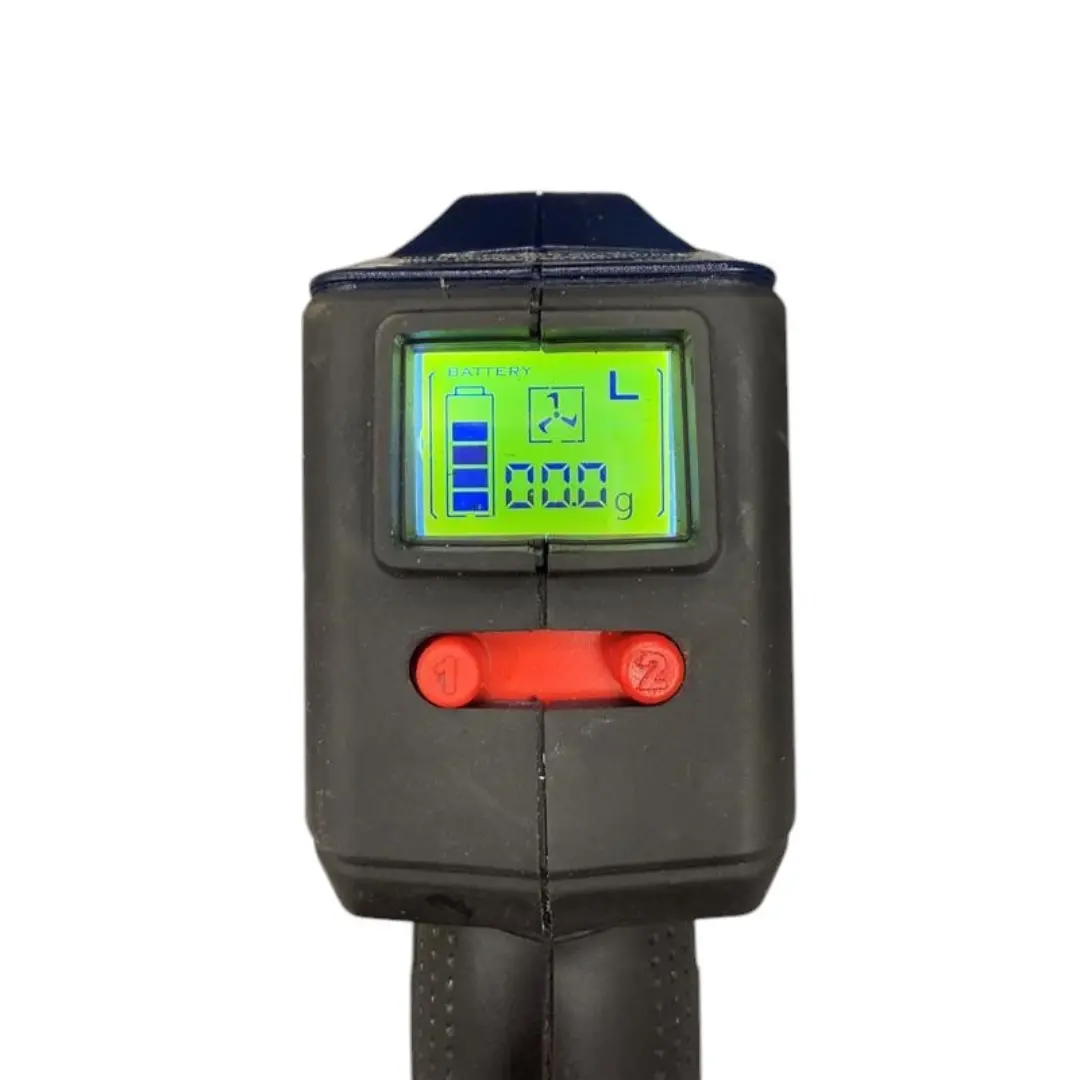

Multifunctional LCD display showing
- Grease delivery in grams (can also be set to ounces)
- Indication of blockage / maximum pressure / overload. Display flashes and turns red.
- Battery charge indicator
- Indicates high "H" or low "L" speed
- When the grease cartridge is almost empty, or pressure is lost, the display will start flashing
Technical specifications
- 18–22 cartridges per battery charge
- Maximum working pressure 413 bar at both high and low speed
- Maximum achievable peak pressure 689 bar
- Output at low speed "L" 103 cc/min
- Output at high speed "H" 162 cc/min
- Capacity 500 ml bulk fill
- Suitable for 420 ml cartridges
Specifications
- SKU 1901205
- HS Code 84672920
- Connection 1/8 NPT
- Flexible spout 1
- Lincoln Reference 1884E
- Maximum pressure (bar) 690
- Number of claws 4 claw
- Type grease gun Battery grease gun
- Vetspuit kleur Chrome
- Cartridge holder Standard
- Variabele druk/volume 1
- Brand Lincoln
- Material to be pumped Grease
Below you will find the downloads and documents. These are manuals or pictures that explain the product.
Manuals
