- P203 GREASE PUMP 4L 24V + TIMER + LOW LEVEL CONTROL

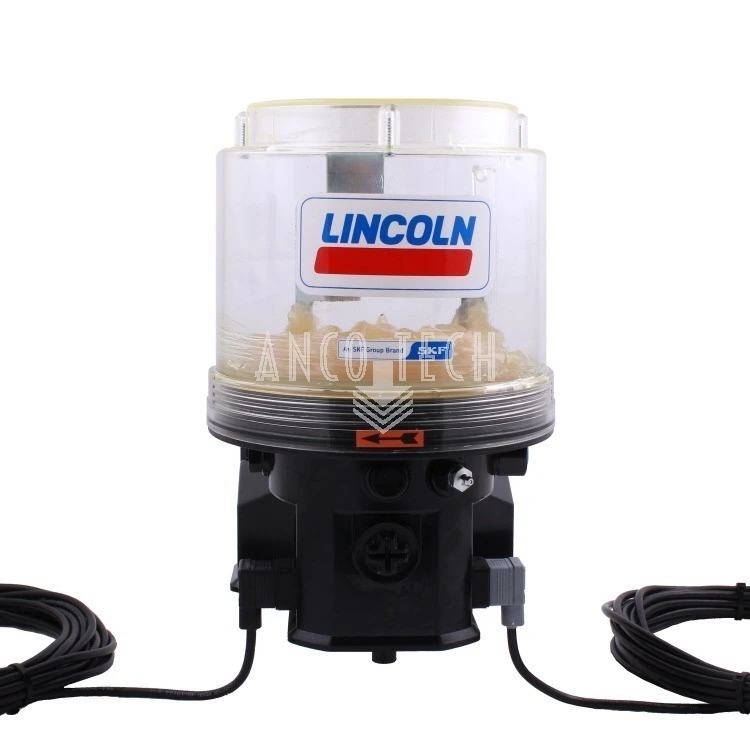

Lincoln P203 Grease Pump 4 Liter 24V with Timer and Low Level Control
| Lincoln Quicklub pump P203 | |
| Model | P203_E-_4XL__-600-24-AA00FB00-V10A |
| Model (old) | P203-4XL-1K6-24-2A1.10-V10 |
| Reservoir contents | 4 Liters |
| For lubricant | Fat up to grade NLGI-2 |
| Low Level Control | Yes |
| Reservoir type | Default / Closed |
| Pumping Element(s) | 1 x K6 |
| Connection voltage | 24Vdc |
| Electric connection(s) | Left Side, Power Supply Right Side, Low Level Control & manual operation with illuminated push button |
| Connector | Square Form A DIN 175301-803 with 10 meter cable |
| Timer | Yes |
| Lincoln Reference | 644-41318-8 |
| Manual (English) | 951-171-023-EN |
Specifications
- ID 3153
- SKU 1041725
- Reservoir 4 L
- Power supply 24V
- Timer Yes
- Low level signal Yes
- Lincoln Reference 644-41318-8
- Maximum pressure (bar) 350
- Brand Lincoln
- Pump type P203
- Material to be pumped Grease
- Model P203_E-_4XL__-600-24-AA00FB00-V10A
- Pump element(s) 1 x K6
- Suitable for grease up to class NLGI-2
- Stock status In stock
- Connector Vierkant Form A DIN 175301-803 met 10 meter kabel
- Electric connections Linkerzijde, Voeding Rechterzijde, Laag niveau controle & handbediening met verlichte drukknop
- Model (old) P203-4XL-1K6-24-2A1.10-V10
Below you will find the downloads and documents. These are manuals or pictures that explain the product.
Manuals
