- P203 GREASE PUMP 8L 230V + TIMER

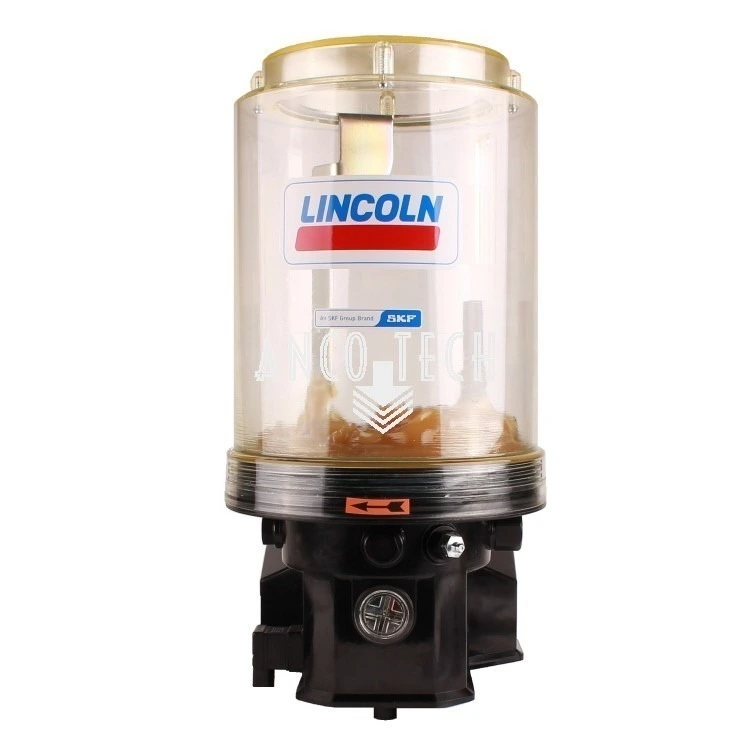

| Lincoln Quicklub Pump P203 | |
| Model | P203__-_8XN__-600-AC-D1000000-V10A |
| Model (old) | P203-8XN -1K6-AC-1A1.01-V10 |
| Reservoir content | 8 Liter |
| For lubricant | Fat to class NLGI-2 |
| Low level control | No |
| Reservoir type | Default / Closed |
| Pump element(s) | 1 x K6 |
| Connection voltage | 230V AC |
| Electric connection(s) | Left side, Power Right side, None |
| Connector | Square Form A DIN 175301-803 |
| Timer | Yes |
| Lincoln Reference | 644-41126-3 |
| Manual (English) | 951-171-023-EN |
Specifications
- SKU 1041425
- Reservoir 8 L
- Timer Yes
- Low level signal No
- Country of origin CZ
- Maximum pressure (bar) 350
- Brand Lincoln
- Model P203__-_8XN__-600-AC-D1000000-V10A
- Pump type P203
- Pump element(s) 1 x K6
- SKF Reference 644-41126-3
- Suitable for grease up to class NLGI-2
- Material to be pumped Grease
- Power supply 230V
- Connector Vierkant Form A DIN 175301-803
- Electric connections Linkerzijde, Voeding | Rechterzijde, Geen
- Model (old) P203- 8XN -1K6-AC-1A1.01-V10
- Stock status In stock
- HS Code 84135069
Below you will find the downloads and documents. These are manuals or pictures that explain the product.
Manuals
