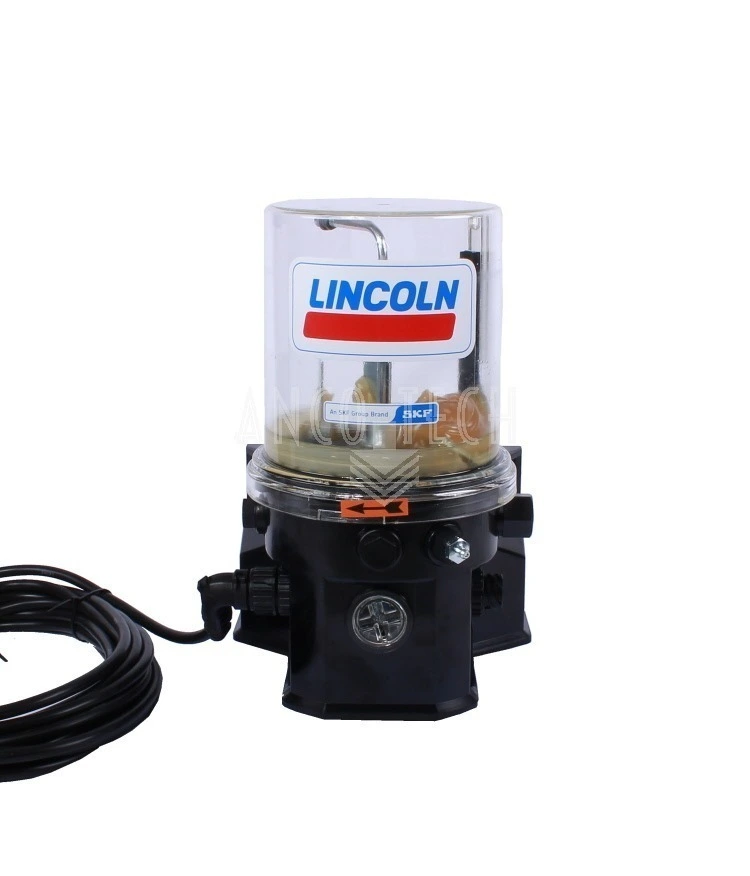

- P203 GREASE PUMP 2L 24V + M-TIMER + LOW LEVEL CONTROL
| Lincoln Quicklub pump P203 | |
| Model | P203_E-_2XL__-600-24-006F00N0-M08A |
| Model (old) | P203- 2XL -1K6-24-2A6.15-M08 |
| Reservoir contents | 2 Liter |
| For lubricant | Bold to NLGI-2 class |
| Low Level Control | Yes |
| Reservoir type | Default / Closed |
| Pump element(s) | 1 x K6 |
| Connection voltage | 24V DC |
| Electric connection(s) | Left Side, Power Supply, Low Level Control & manual operation with illuminated push button Right side, Bayonet 4 pin for connecting sensor(s) of distributor(s) |
| Connector | Bayonet 7/5 pin with 10 meter cable |
| Timer | Yes |
| Lincoln Reference | 644-41057-6 |
| Manual (English) | 951-171-026-EN |
Specifications
- ID 3093
- SKU 1041285
- Reservoir 2 L
- Power supply 24V
- Timer Yes
- Low level signal Yes
- Lincoln Reference 644-41057-6
- Maximum pressure (bar) 350
- Brand Lincoln
- Pump type P203
- Material to be pumped Grease
- Model P203_E-_2XL__-600-24-006F00N0-M08A
- Pump element(s) 1 x K6
- Suitable for grease up to class NLGI-2
- Stock status In stock
- Connector Bajonet 7/5 polig met 10 meter kabel
- Electric connections Linkerzijde, Voeding, Laag niveau controle & handbediening met verlichte drukknop | Rechterzijde, Bajonet 4 polig voor aansluiting sensor(en) van verdeler(s)
- Model (old) P203- 2XL -1K6-24-2A6.15-M08
Below you will find the downloads and documents. These are manuals or pictures that explain the product.
Manuals
Data Sheet
