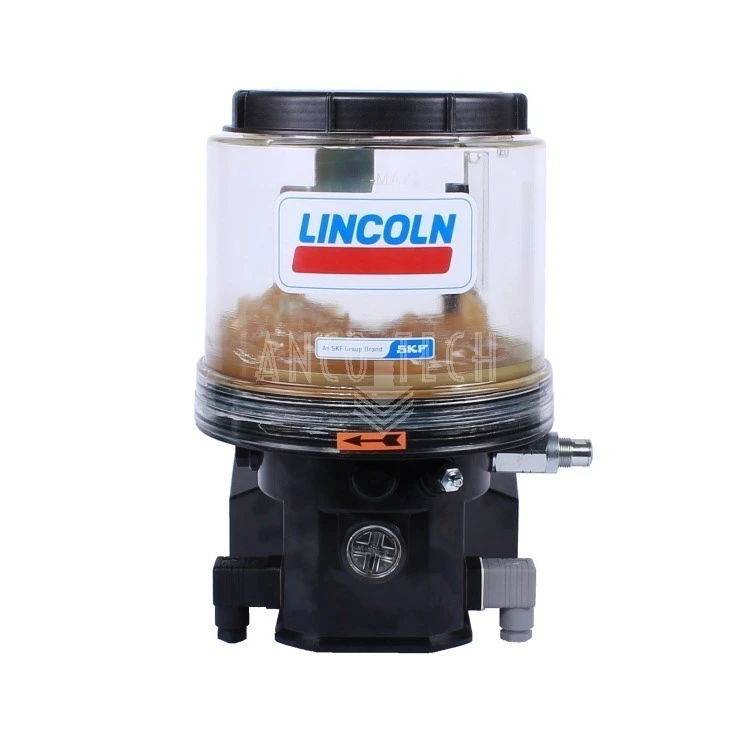

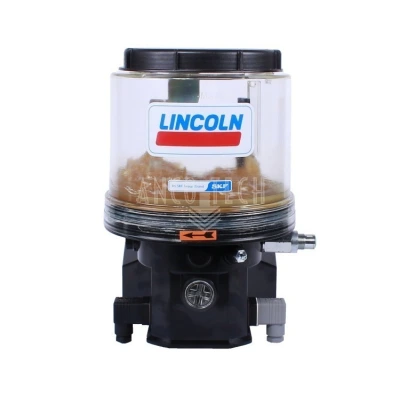

P203 GREASE PUMP 4L 230V + TIMER + LOW LEVEL CONTROL
P203 GREASE PUMP 4L 230V + TIMER + LOW LEVEL CONTROL
P203 GREASE PUMP 4L 230V + TIMER + LOW LEVEL CONTROL P203 GREASE PUMP 4L 230V + TIMER + LOW LEVEL CONTROL
{{ active + 1 }} / {{ images.length }}

P203 GREASE PUMP 4L 230V + TIMER + LOW LEVEL CONTROL

Backordered
5 in stock
€2,071.44
Excl. vat

We recommend using a relief valve for each outlet. Click here for an overview of relief valves.

Specifications
  • SKU 1042910
  • Brand Lincoln
  • Pump type P203
  • Model P203__-_4XLBO-R00-AC-D100G200-___A
  • Model (old) P203- 4XLBO-1KR-AC-2A1.01
  • Lincoln Reference 644-41054-8
  • Pump Electric
  • Pump element(s) 1 x KR Adjustable
  • Power supply 230V
  • Reservoir type Plastic with screw cap
  • Maximum pressure (bar) 350
  • Material to be pumped Grease
  • Suitable for grease up to class NLGI-2
  • Connector Vierkant Form A DIN 175301-803
  • Electric connections Linkerzijde, Voeding Rechterzijde, Laag niveau controle & handbediening met verlichte drukknop
  • Country of origin CZ
  • HS Code 84135069
Below you will find the downloads and documents. These are manuals or pictures that explain the product.
Manuals
Components of Centralized Lubrication Pump P203 Manuals

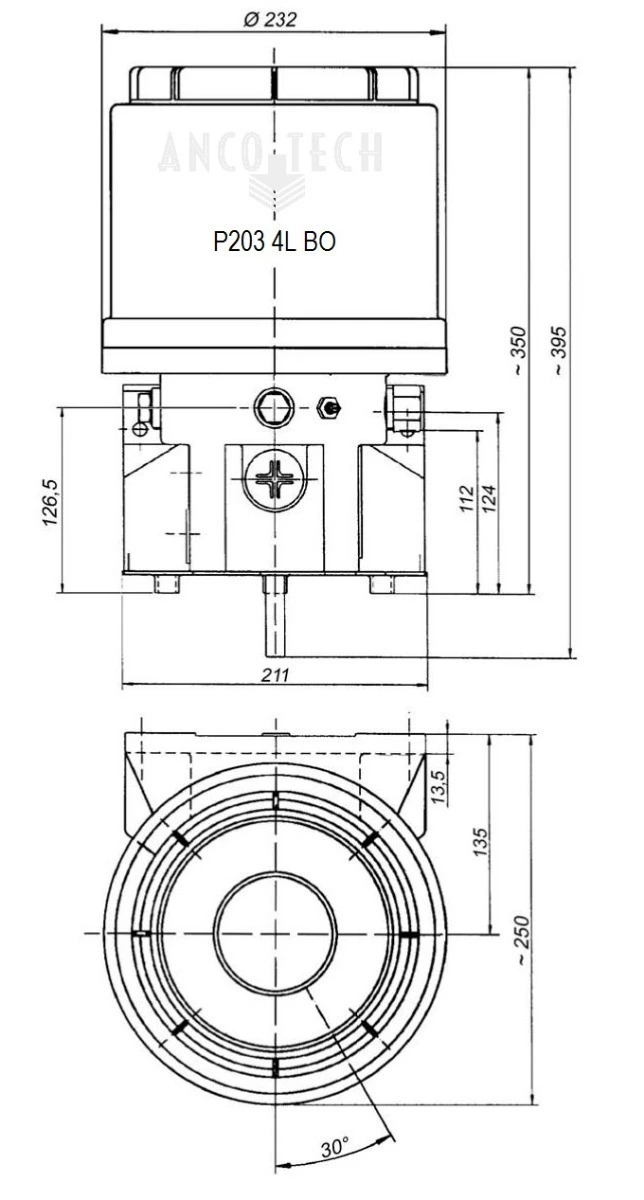

Boorgaten voor bevestiging P203 Manuals
