- P203 GREASE PUMP 8L 12V + TIMER

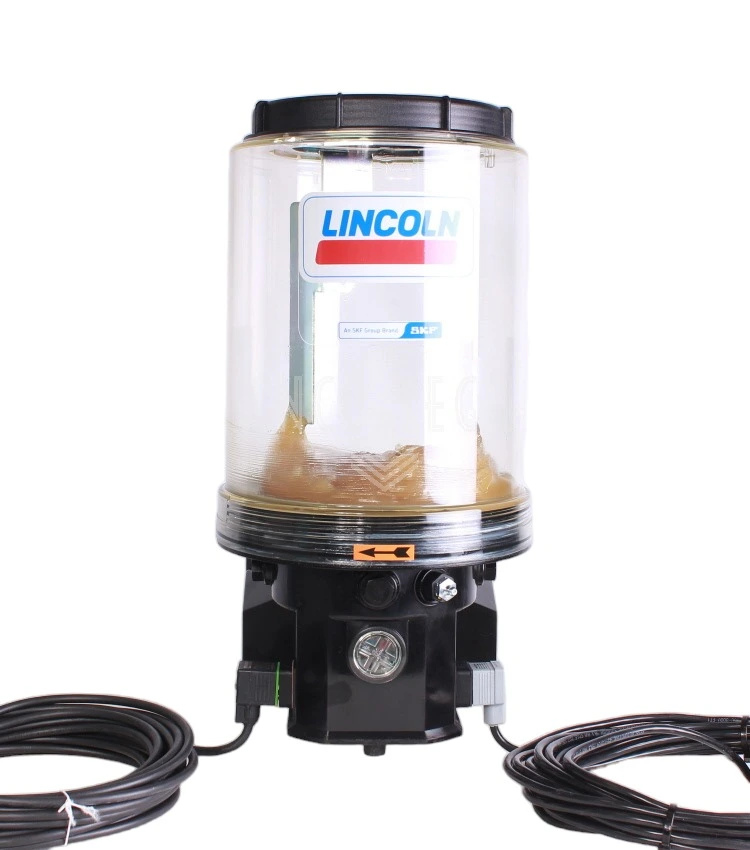

| Lincoln Quicklub pump P203 | |
| Model | P203_E-_8XNBO-000-12-AA00FB00-V10A |
| Model (old) | P203- 8XNBO-...-12-2A1.10-V10 |
| Reservoir contents | 8 Liters |
| For lubricant | Fat up to grade NLGI-2 |
| Low Level Control | No |
| Reservoir type | With screw cap |
| Pumping Element(s) | None |
| Connection voltage | 12Vdc |
| Electric connection(s) | Left Side, Power Supply Right side, Hand control with illuminated push button |
| Connector | Square Form A DIN 175301-803 with 10 meter cable |
| Timer | Yes |
| Lincoln Reference | 644-40833-7 |
| Manual (English) | 951-171-023-EN |
Specifications
- ID 3818
- SKU 1043265
- Reservoir 8 L
- Power supply 12V
- Timer Yes
- Low level signal No
- Lincoln Reference 644-40833-7
- Maximum pressure (bar) 350
- Brand Lincoln
- Pump type P203
- Material to be pumped Grease
- Model P203_E-_8XNBO-000-12-AA00FB00-V10A
- Pump element(s)
- Suitable for grease up to class NLGI-2
- Stock status In stock
- Connector Vierkant Form A DIN 175301-803 met 10 meter kabel
- Electric connections Linkerzijde, Voeding Rechterzijde, Handbediening met verlichte drukknop
- Model (old) P203- 8XNBO-...-12-2A1.10-V10
Below you will find the downloads and documents. These are manuals or pictures that explain the product.
Manuals
