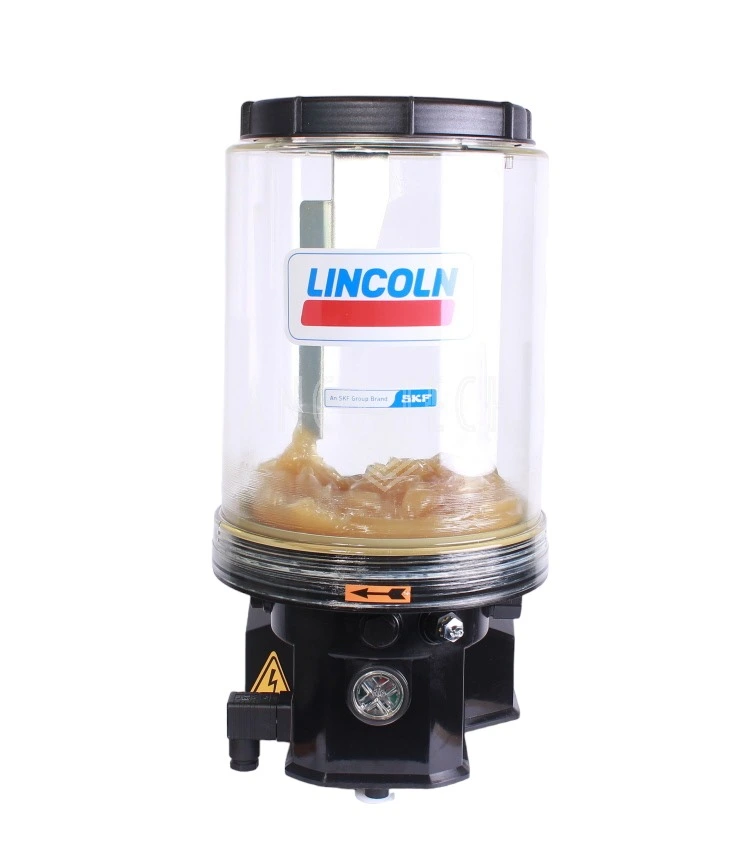

- P203 GREASE PUMP 8L 230V + TIMER
| Lincoln Quicklub pump P203 | |
| Model | P203__-_8XNBO-600-AC-D1000000-V10A |
| Model (old) | P203- 8XNBO-1K6-AC-1A1.01-V10 |
| Reservoir contents | 8 Liters |
| For lubricant | Fat up to grade NLGI-2 |
| Low Level Control | No |
| Reservoir type | With screw cap |
| Pumping Element(s) | 1 x K6 |
| Connection voltage | 230V AC |
| Electric connection(s) | Left Side, Power Supply Right Side, Low Level Control & manual operation with illuminated push button |
| Connector | Square Form A DIN 175301-803 |
| Timer | Yes |
| Lincoln Reference | 644-40720-1 |
| Manual (English) | 951-171-022-EN |
Specifications
- ID 4046
- SKU 1041054
- Reservoir 8 L
- Power supply 230V
- Timer Yes
- Low level signal No
- Lincoln Reference 644-40720-1
- Maximum pressure (bar) 350
- Brand Lincoln
- Pump type P203
- Material to be pumped Grease
- Model P203__-_8XNBO-600-AC-D1000000-V10A
- Pump element(s) 1 x K6
- Suitable for grease up to class NLGI-2
- Stock status In stock
- Connector Vierkant Form A DIN 175301-803
- Electric connections Linkerzijde, Voeding | Rechterzijde, Laag niveau controle & handbediening met verlichte drukknop
- Model (old) P203- 8XNBO-1K6-AC-1A1.01-V10
Below you will find the downloads and documents. These are manuals or pictures that explain the product.
Manuals
