SYSTEM 24 LUBRICATION UNIT LAGD125/HB2
SKF High Viscosity, High Load and High Temperature Grease
SKF LGHB 2 is a high viscosity mineral oil based grease using the very latest calcium sulfonate complex thickener technology. Due to its specific composition, the product can withstand high temperatures and extreme stress and can therefore be used for a whole range of applications, especially in mining and in the metal and cement segments. This grease contains no additives and the (EP) high pressure properties are due to the soap structure.
• Excellent anti-oxidation and anti-corrosion properties
• Good EP performance in high load applications
• Withstands peak temperatures up to 200°C
Typical Applications:
• Steel-on-steel ball joint bearings
• Pulp and paper machines
• Asphalt vibrating screens
• Continuous casting machines
• Sealed spherical roller bearings with an operating temperature up to 150 °C
• Roller bearings in the steel industry
• Forklift mast rollers
SKF system 24 Lubrication unit LAGD125/HB2
| Automatic Gas Operated Lubricator | |
| Model | LAGD125/WA2 |
| Lubricant | High temperature and high load, plain bearings |
| Content | 125ml |

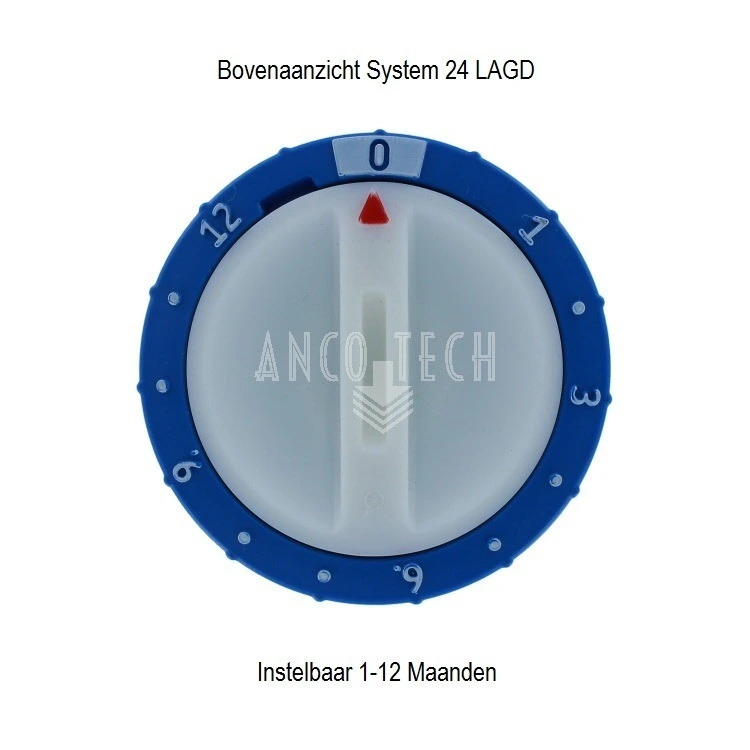

| Rated useful life | Adjustable 1-12 months |
| Ambient temperature | -20 to +60°C |
| Maximum workload | 5 bar (at startup) |
| Drive mechanism | Pressure build-up by gas cell with inert gas |
| Connection | 1/4 Gas |
| Total height | 119mm |
| Largest diameter | 54mm |
