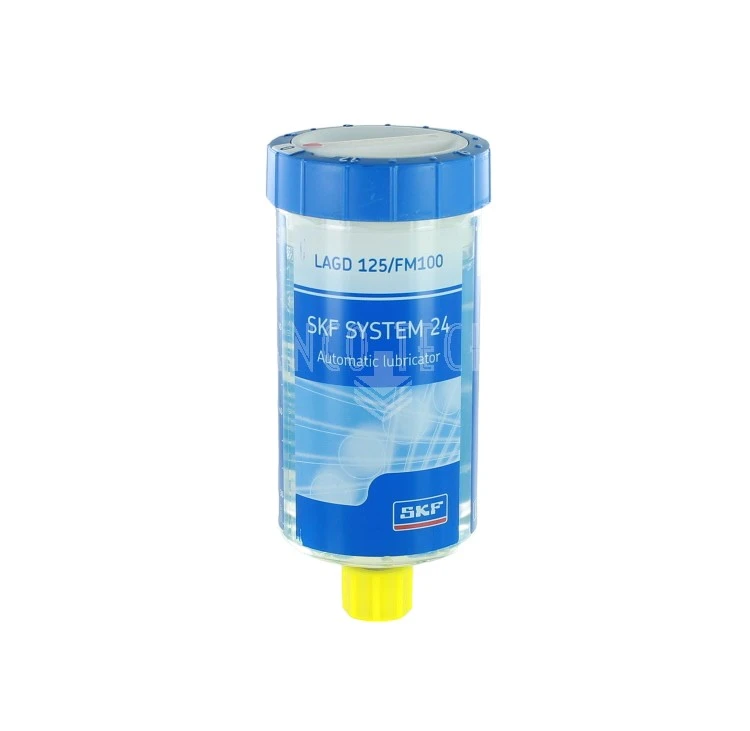

SKF system 24 Lubrication Unit LAGD125/FM100
LAGD 125/FM100 is filled with SKF LFFM 100 food-safe synthetic chain oil specially developed for the lubrication of chains operating in the food processing and pharmaceutical industries. It provides excellent load and anti-wear properties, even in the presence of moisture and in low-temperature environments.
- Certified for the food industry with: NSF H1, NSF ISO 21469, halal, and kosher
- Particularly suitable for humid environments and low-temperature conditions
- Excellent corrosion protection properties on steel and copper
- Outstanding wear protection
- Excellent oxidation stability
- Low residue formation
SKF LFFM 100 Safety Data Sheet
| Automatic Gas-Powered Lubrication Unit | |
| Model | LAGD125/FM100 |
| Lubricant | Foodgrade chain oil |
| Volume | 125 ml |
| Nominal service life | Adjustable 1-12 months |
| Ambient temperature | -20 to +60°C |
| Maximum operating pressure | 5 bar (at startup) |
| Drive mechanism | Pressure build-up by gas cell with inert gas |
| Connection | 1/4 Gas |
| Total height | 119 mm |
| Largest diameter | 54 mm |
Specifications
- SKU 1200042
- SKF Reference LAGD125/FM100
- Brand SKF
- SKF Lubricants LFFM 100
- Packaging Single-point lubricator
