Automatic lubrication system TLMP1008 24VDC suitable for connection to 1 to 8 lubrication points.
- Equipped with progressive divider for 1 to 8 lubrication points
- Internal relief valve. Maximum pressure 205 bar
- Protection class IP65
- Temperature -25 to 70°C

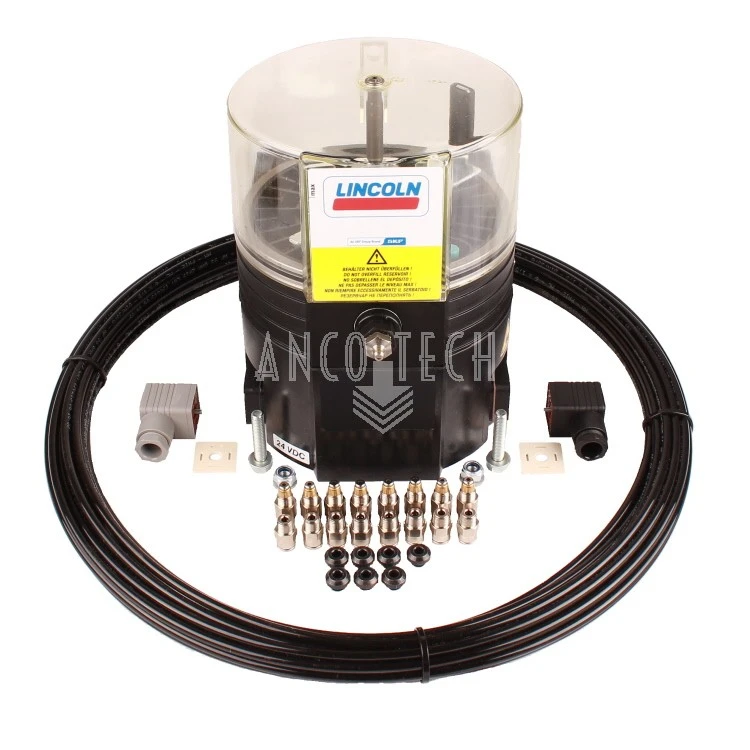

Complete kit consisting of:
| 1 pc | Pump with 1 litre reservoir 24VDC |
| 1 set | Pump mounting hardware |
| 2 pcs | Electrical connectors for pump |
| 20 m | Polyamide tubing 6 x 1.5 mm |
| 8 pcs | Push-in fitting straight G1/8 |
| 8 pcs | Push-in fitting for pump |
| 7 pcs | Shut-off plug for pump |
Specifications
- SKU 1041640
- HS Code 84798960
- Country of origin CZ
- Lincoln Reference TLMP 1008/24DC
- Maximum pressure (bar) 205
- Pump Electric
- SKF Reference TLMP 1008/24DC
- Model TLMP 1008/24DC
- Connector Vierkant Form A DIN 175301-803
- Electric connections Linkerzijde, Voeding Rechterzijde, Laag niveau controle & Foutmelding
- Brand Lincoln
- Pump type QLS
- Suitable for grease up to class NLGI-2
- Reservoir type Plastic, closed
- Power supply 24V
- Material to be pumped Grease
- Pump element(s) K6 QLS
