PR LEVER GUN PRELIxx PRO 2014.1 G1/8 BLUE
SKU
5400156

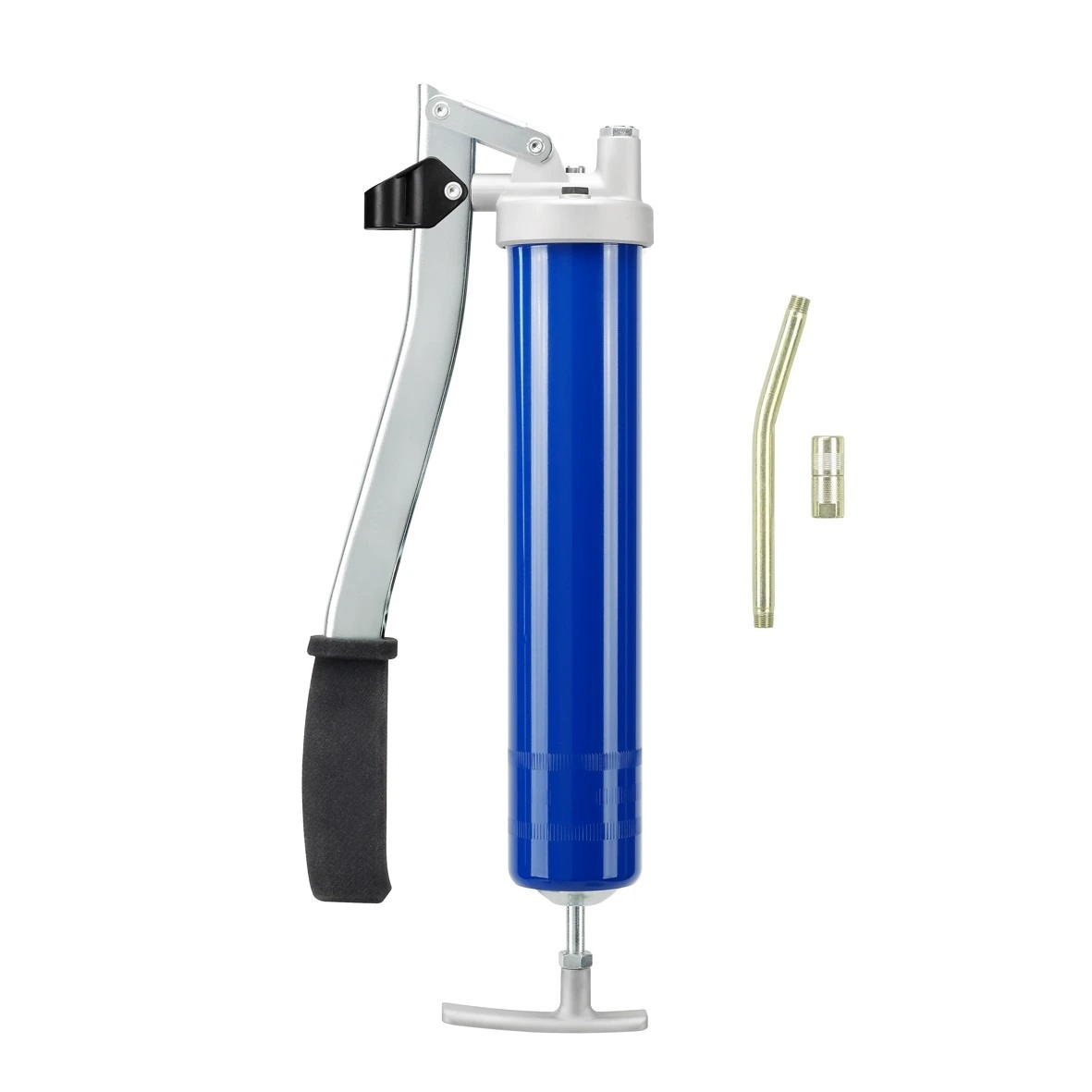

Pressol Lever gun PRELIxx PRO 2014.1 G1/8 Blue
De PRELIxx PRO 2014.1 is the top range model lever gun of Pressol with ergonomic non-slip handle.
Grease supply variable from 0,1 to 1,6 cm³ per stroke with a pressure maximum of 600bar
Specifications
- With hose bracket
- Filling nipple (FN), M 10 x 1 male (12 670)
- Galvanized parts: hand lever, push rod handle, locking catch, head
- Grease gun head, zinc die casting Z 410
- Ergonomic handle, non-slip, excellent power transfer and handling
- Grease gun also available in the colors black, silver, red, green and yellow
Stock quantity: 45
€46.60
Pressol Lever gun PRELIxx PRO 2014.1 G1/8 Blue
Special notes
- This Pressol Lever gun PRELIxx PRO 2014.1 operates greases up to NLGI 3 at 20 °C
- Quantity of delivered grease at a back-pressure of 200 bar nearly unchanged after 40,000 operating cycles
- Pump piston, cylinder and O-ring with 6 μ fit (no dummy lubrication)
- At high back pressure, e.g. gummy lubrication point, lubrication can be achieved with significantly less effort by shorter strokes
- Grease supply variable from 0,1 to 1,6 cm³ per stroke
- Thanks to the optimized hand lever kinematics, lubrication can be done with little effort
- Plunger with exactly fitting when using bulk grease or cartridge
- Due to the flexibility of the push rod, the plunger can be inserted into damaged cartridges or cartridges not exactly matching the standard dimensions
- Push rod can be locked in any position - push rod does not have to be fully retracted to release the spring pressure on the grease (grease does not saponify)
- The ease of dismantling permits simple cleaning
- Rolled thread on the grease gun tube resists damage from impact and allows quick and easy screwing-in by 1,5 turns
- High-speed ventilation, by half a rotation of the grease gun tube
- Designed for use in rough conditions
- acc. to DIN 1283
- TÜV - certified
Pressol Lever gun PRELIxx PRO 2014.1 G1/8 Blue
Stock Status | In Stock |
---|
