PR GREASE FILLING PUMP L600 SET 15:1 20/30KG Ø270-310MM

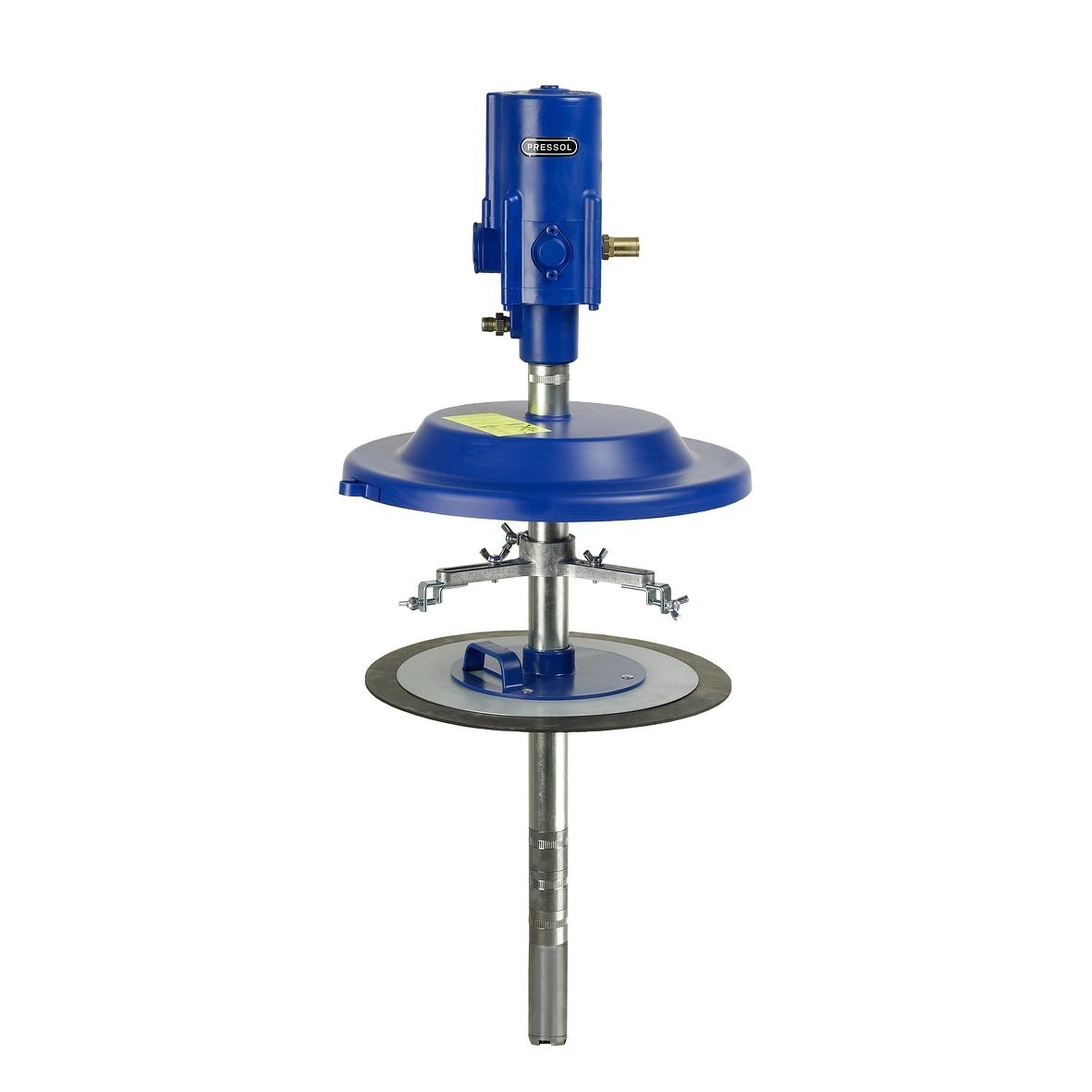

Pressol pneumatic grease filling pump set 20/30KG model 18640051
Attention! This is a filling pump with a low maximum pressure of up to 120 bar and therefore not suitable for lubrication applications. For lubrication, choose a standard grease pump with a pressure ratio of 50:1 with a maximum capacity of 400 bar.
The Pump is easy to disassemble and clean. 99% emptying the container, leaving 1% of the remaining fat in the container. Low noise level. Quick and easy operation.
Pressol pneumatic grease filling pump set 20/30KG model 18640051
Technical specifications
- Suitable for drum with internal diameter Ø270-310mm
- Complete with barrel cover, drum bracket and follower plate.
- Pressure ratio 15:1 (18640051)
- Length pump tube 600mm
- Maximum flow at free range 1.7 L/min
- Yield per cycle 13.0cc
- Yield at 75 cycle per minute 1.0 liter
- Maximum air pressure 8 bar
- Maximum outlet pressure 120 bar
- Air connection 1/4 BSP female
- Exhaust 1/4 BSP male
Attention! This is a filling pump with a low maximum pressure of up to 120 bar and therefore not suitable for lubrication applications. For lubrication, choose a standard grease pump with a pressure ratio of 50:1 with a maximum capacity of 400 bar.
