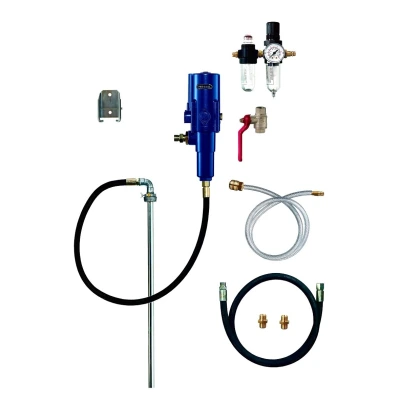

Pressol pneumatic Oil pump installation set model 19385600
Technical specifications
- Oil pump 5:1 model 19385
- Suitable for oil up to SAE 140
- Pump tube Stubby for wall mounting
- Maximum flow rate at free range 20 L/min
- Yield per cycle 70cc
- Yield at 75 cycles per minute 5.2 liters
- Maximum air pressure 8 bar
- Maximum outlet pressure 40 bar
- Air connection 1/4 BSP female
- Exhaust 1/2 BSP bu
- Pump tube with elbow 3/4G female.
- Wall mount 19521
- Coupling hose 2 m DN13 with 1/2G bi 3/4G male
- Compressed air hose 2 m DN10 with quick couplings Euro profile
- Oil drain hose 2 m DN13 with 1/2G bi.bu
- Ball valve 1/2
- Filter Pressure Regulator with Oil Mister 20218950
Specifications
- SKU 5410440
- Country of origin CZ
- Pump Pneumatic
- Brand Pressol
- Material to be pumped Oil
