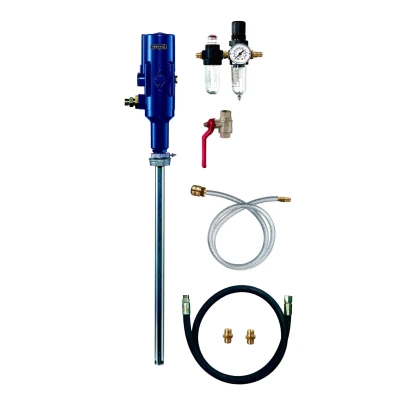

PR OIL PUMP 5:1 INSTALLATION KIT FOR 200/220L DRUM
Pressol pneumatic Oil pump installation set for 200/220L drum model 19335600
Pump double acting, i.e. permanent passage of the medium. Especially for oil supply over long distances
To pump Engine, transmission, hydraulic oil.
Ideal for direct connection to long pipeline systems
Can be easily combined with several hose reels
Suitable for oil up to SAE 140
Installation set consisting of:
Pressol pneumatic Oil pump installation set model 19335600
Technical specifications
- Oil pump 5:1 model 19335
- Suitable for oil up to SAE 140
- Length pump tube 860mm for 200/220L drum
- Maximum flow rate at free range 20 L/min
- Yield per cycle 70cc
- Yield at 75 cycles per minute 5.2 liters
- Maximum air pressure 8 bar
- Maximum outlet pressure 40 bar
- Air connection 1/4 BSP female
- Exhaust 1/2 BSP bu
- Compressed air hose 2 m DN10 with quick couplings Euro profile
- Oil drain hose 2 m DN13 with 1/2G bi.bu
- Ball valve 1/2
- Filter Pressure Regulator with Oil Mister 20218950
