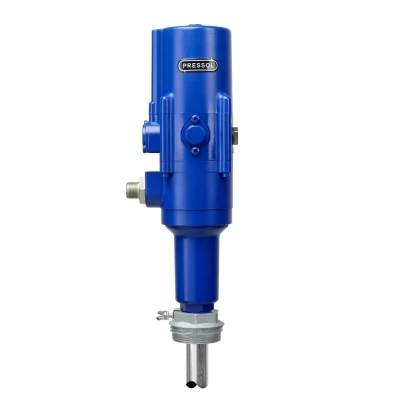

PR OIL PUMP 5:1 TO SAE140 FOR 200/220L DRUM
Pressol pneumatic Oil pump model 19335
Pump double acting, i.e. permanent passage of the medium. Especially for oil supply over long distances
To pump Engine, transmission, hydraulic oil
Suitable for Oil up to SAE 140
Ideal for direct connection to long pipeline systems
Can be easily combined with several hose reels
Pressure ratio 5:1
Yield at 75 cycles per minute 5.2 liters
Maximum flow rate at free range 20 L/min
Maximum pressure 40 bar.
Length pump tube 860mm for 200L drum
Pressol pneumatic Oil pump model 19335
Technical specifications
- Pressure ratio 5:1
- Suitable for Oil up to SAE 140
- Length pump tube 860mm for 200L drum
- Maximum flow rate at free range 20 L/min
- Yield per cycle 70cc
- Yield at 75 cycles per minute 5.2 liters
- Maximum air pressure 8 bar
- Maximum outlet pressure 40 bar
- Air connection 1/4 BSP female
- Exhaust 1/2 BSP bu
