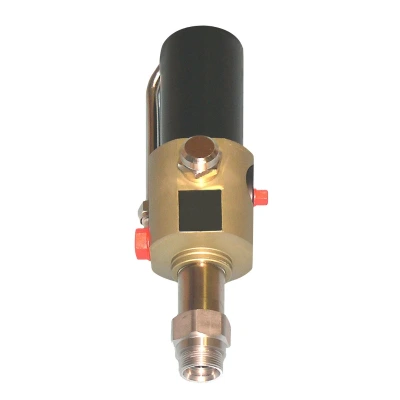

Pressol pneumatic fluid pump model 19285843
Technical specifications
- Pressure ratio 3:1
- Material of pump housing: Aluminum
- Materials of parts in contact with fluids: Stainless steel, brass, plastic, FKM Viton®
- Suitable for transmission oil up to SAE90, glycol, windshield washer fluid, and water
- Pump pipe Stubby for wall mounting
- Maximum output at free flow 23 L/min
- Output per cycle 92cc
- Output at 75 cycles per minute 6.9 liters
- Maximum air pressure 8 bar
- Maximum outlet pressure 24 bar
- Air connection 1/4 BSP male
- Inlet 1" BSP female
- Outlet 3/4 BSP male
Specifications
- SKU 5410495
- Country of origin CZ
- Pump Pneumatic
- Brand Pressol
- Material to be pumped Liquids
