PR OIL PUMP 3:1 WALL MOUNTING INSTALLATION KIT
SKU
5410425
Pressol pneumatic Oil pump installation set for wall mounting model 19285600
To pump Engine, transmission, hydraulic oil.
Ideal for direct connection to pipeline systems up to 70 m
Can be easily combined with several hose reels
Suitable for oil up to SAE 90

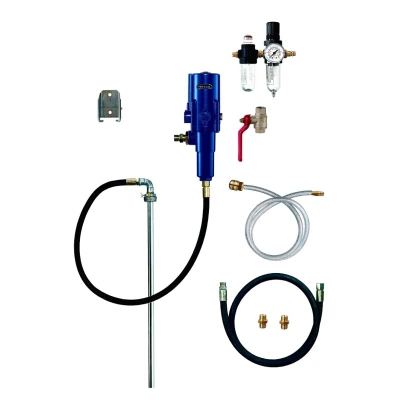

Installation set consisting of:
Stock quantity: 0
€673.00
Pressol pneumatic Oil pump installation set model 19285600
Technical specifications
- Oil pump 3:1 model 19285
- Suitable for oil up to SAE 90
- Pump tube Stubby for wall mounting
- Maximum flow at free range 22 L/min
- Yield per cycle 70cc
- Yield at 75 cycles per minute 5.2 liters
- Maximum air pressure 8 bar
- Maximum outlet pressure 24 bar
- Air connection 1/4 BSP female
- Exhaust 1/2 BSP bu
- Pump tube with elbow 3/4G female.
- Wall holder 19521
- Coupling hose 2 m DN13 with 1/2G bi 3/4G male
- Compressed air hose 2 m DN10 with quick couplings Euro profile
- Oil drain hose 2 m DN13 with 1/2G bi.bu
- Ball valve 1/2
- Filter Pressure Regulator with Oil Mister 20218950< /li>
