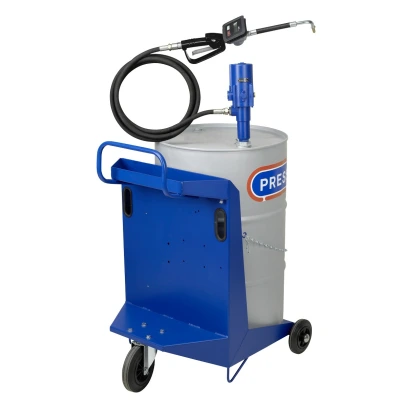

PRO OIL PUMP SET MOBILE 3:1 200L WITH HOSE AND DIGITAL GUN
Pressol pneumatic Oil pump set mobile model 19244551
Complete with drum dolly 17009 with 4 meter hose and oil gun digital with flexible 90° spout 1/2"G 19698
To pump engine, transmission, hydraulic oil.
Suitable for oil up to SAE 90
Ideal for direct connection to pipeline systems up to 70 m
Can be easily combined with several hose reels
Pressure ratio 3:1
Yield at 75 cycles per minute 5.2 liters
Maximum yield at free range 22 L/min
Pump tube length 860mm for 200/220L drum
Pressol pneumatic Oil pump set mobile model 19244551
Technical specifications
- Oil pump model 19235
- Pressure ratio 3:1
- Suitable for oil up to SAE 90
- Pump tube length 860mm for 200/220L drum
- Maximum yield at free range 22 L/min
- Yield per cycle 70cc
- Yield at 75 cycles per minute 5.2 liters
- Maximum air pressure 8 bar
- Maximum output pressure 24 bar
- Air connection 1/4 BSP bi
- Exhaust 1/2 BSP male
Delivery included
Stock Status | In Stock |
---|
