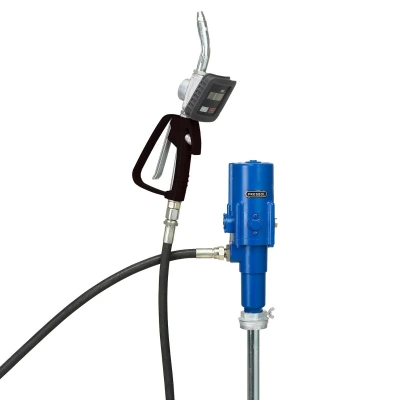

Pressol pneumatic oil pump set model 19242
Complete with 4 meter hose and oil gun 30° outlet with digital flowmeter 1/2"G 19698950
For pumping engine, transmission and hydraulic oil.
Suitable for oil up to SAE 90
Ideal for direct connection to piping systems up to 70 m
Easily combinable with multiple hose reels
Pressure ratio 3:1
Output at 75 cycles per minute 5.2 liters
Maximum output at free flow 22 L/min
Pump tube length 860mm for 200/220L drum
Technical specifications
- Oil pump model 19235
- Pressure ratio 3:1
- Suitable for oil up to SAE 90
- Pump tube length 860mm for 200/220L drum
- Maximum output at free flow 22 L/min
- Output per cycle 70 cc
- Output at 75 cycles per minute 5.2 liters
- Maximum air pressure 8 bar
- Maximum outlet pressure 24 bar
- Air connection 1/4 BSP bi
- Outlet 1/2 BSP bu
Delivery includes
- Oil hose 1/2" 4 meter
- Oil gun 30° outlet with digital flowmeter 1/2"G 19698950
Specifications
- SKU 5410655
- Country of origin CZ
- Pump Pneumatic
- Pressol Reference 19242
- Brand Pressol
- Material to be pumped Oil
