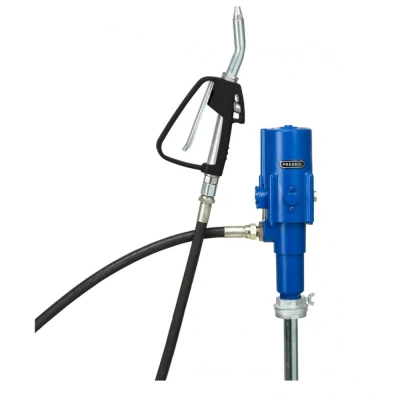

Pressol pneumatic oil pump set model 19241
Technical specifications
- Oil pump model 19235
- Pressure ratio 3:1
- Suitable for oil up to SAE 90
- Length of pump tube 860mm for 200/220L drum
- Maximum flow rate at free discharge 22 L/min
- Output per cycle 70cc
- Output at 75 cycles per minute 5.2 liters
- Maximum air pressure 8 bar
- Maximum outgoing pressure 24 bar
- Air inlet 1/4 BSP bi
- Outlet 1/2 BSP bu
Delivery includes
- Oil hose 1/2 4 meters
- Oil gun with 30° outlet 1/2"G 19718
Specifications
- SKU 5410325
- Country of origin CZ
- Pump Pneumatic
- Brand Pressol
- Material to be pumped Oil
