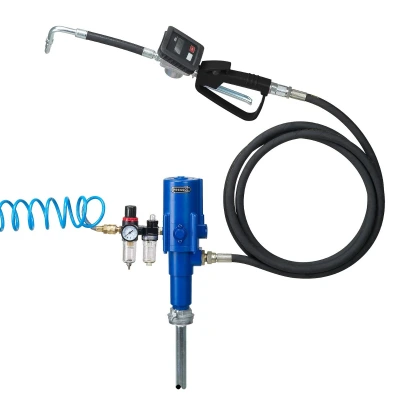

PR OIL PUMP + FRL 3:1 200L WITH HOSE AND OIL GUN

Pressol pneumatic oil pump set model 19235888

Complete with FR+L air treatment unit and 5 meter spiral hose.

Technical specifications

• Oil pump model 19235
• Pressure ratio 3:1
• Suitable for oil up to SAE 90
• Pump tube length 860mm for 200/220L drum
• Maximum output at free flow 22 L/min
• Output per cycle 70cc
• Output at 75 cycles per minute 5.2 liters
• Maximum air pressure 8 bar
• Maximum outlet pressure 24 bar
• Air connection 1/4 BSP bi
• Outlet 1/2 BSP bu

Delivery includes

• Oil hose 1/2 4 meters
• Air treatment unit FR+L 20218950
• Spiral hose 5M with Euro connectors 20185
• Oil gun with flexible 90° outlet 1/2"G 19698
