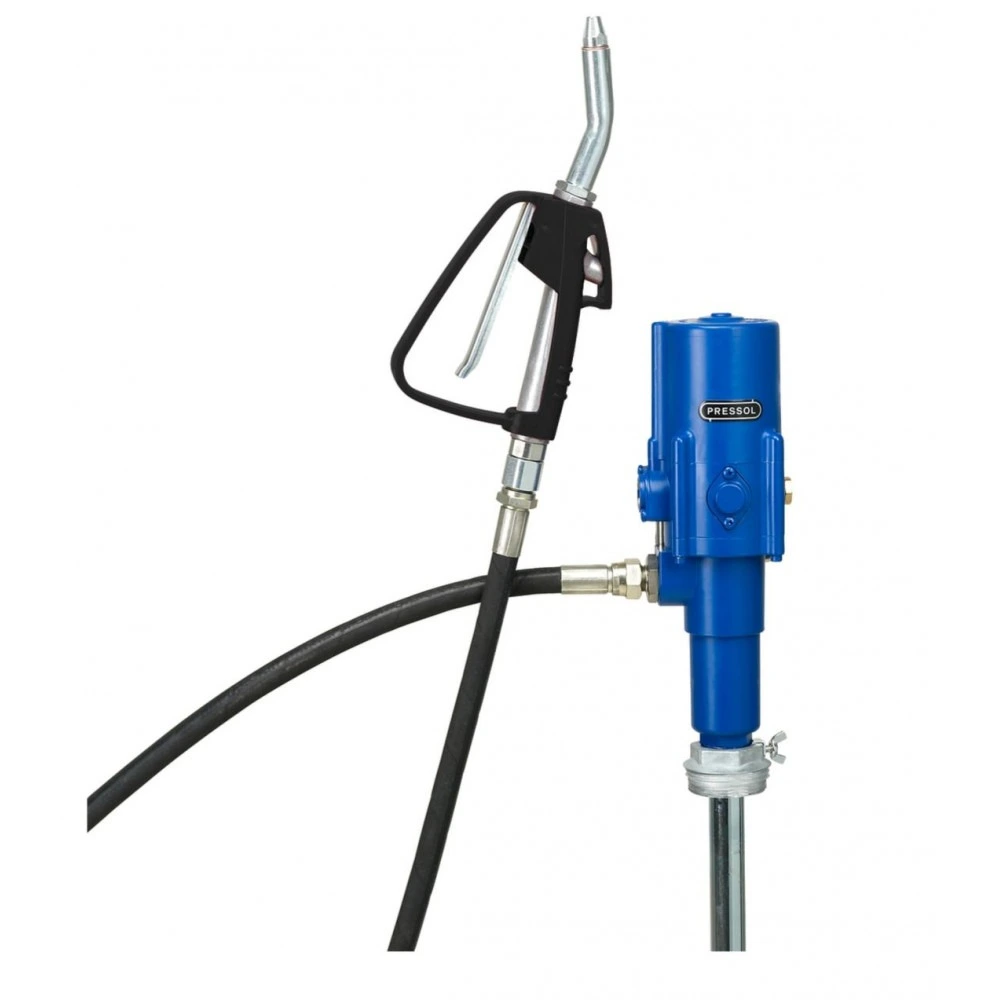

PR OIL PUMP 3:1 60L WITH HOSE AND GUN 19211

Pressol pneumatic oil pump set model 19211

Complete with 4 meter hose and gun with 30° nozzle 1/2"G 19718

 For pumping engine, transmission and hydraulic oil.

Suitable for oil up to SAE 90

Ideal for direct connection to piping systems up to 70 m

Can be combined without problems with multiple hose reels

Pressure ratio 3:1

Output at 75 cycles per minute 5.2 liter

Maximum output at free flow 22 L/min

Pump tube length 670mm for 60L drum

 Technical specifications

• Oil pump model 19205
• Pressure ratio 3:1
• Suitable for oil up to SAE 90
• Pump tube length 670mm for 60L drum
• Maximum output at free flow 22 L/min
• Output per cycle 70cc
• Output at 75 cycles per minute 5.2 liter
• Maximum air pressure 8 bar
• Maximum outlet pressure 24 bar
• Air connection 1/4 BSP bi
• Outlet 1/2 BSP bu

Delivery includes

• Oil hose 1/2 4 meter
• Oil gun with 30° nozzle 1/2"G 19718
