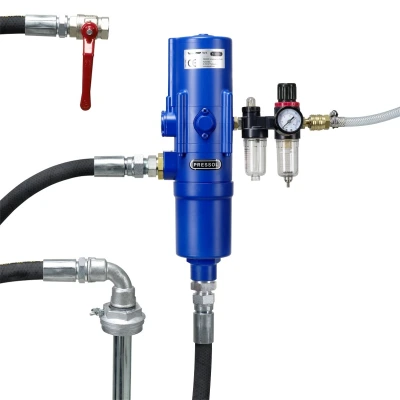

PR OIL PUMP 1:1 WALL MOUNTING INSTALLATION KIT
SKU
5410410
Pressol pneumatic Oil pump installation set for wall mounting model 19185600
For transporting thin, self-lubricating media such as diesel, heating oil and motor oil
Can be used as a tank pump due to the high throughput capacity
Suitable for oil up to ISO VG 15 - SAE 5
Installation set consisting of:
- Oil pump 1:1 model 19185
- Pump tube with elbow 3/4G female.
- Wall holder 19521
- Coupling hose pump/pump tube 2 m DN20 with 3/4G bi.bu
- Compressed air hose 2 m DN10 with quick couplings Euro profile
- Oil drain hose 2 m DN20 with 3/4G bi.bu
- Ball valve 3/4
- Filter Pressure Regulator with Oil Mister 20218950< /li>
Stock quantity: 0
€681.00
Pressol pneumatic Oil pump installation set model 19185600
Technical specifications
- Oil pump 1:1 model 19185
- Suitable for oil up to ISO VG 15 - SAE 5
- Pump tube Stubby for wall mounting
- Maximum flow at free range 66 L/min
- Yield per cycle 275cc
- Yield at 75 cycle per minute 20.6 liters
- Maximum air pressure 8 bar
- Maximum outlet pressure 8 bar
- Air connection 1/4 BSP female
- Exhaust 3/4 BSP bu
- Pump tube with elbow 3/4G female.
- Wall mount 19521
- Coupling hose pump/pump tube 2 m DN20 with 3/4G bi.bu
- Compressed air hose 2 m DN10 with quick couplings Euro profile
- Oil drain hose 2 m DN20 with 3/4G bi.bu
- Ball valve 3/4
- Filter Pressure Regulator with Oil Mister 20218950
