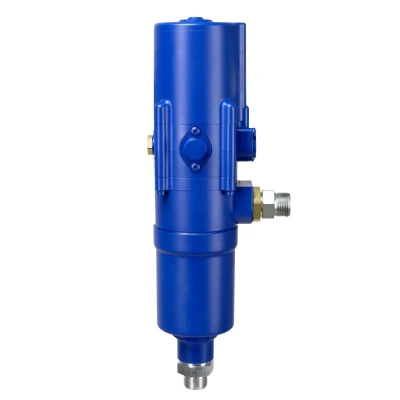

PR OIL PUMP 1:1 TO SAE5 WALL MOUNT
Pressol pneumatic Oil pump model 19185
For transporting thin, self-lubricating media such as diesel, heating oil and motor oil
Can be used as a tank pump due to the high throughput capacity
Suitable for oil up to ISO VG 15 - SAE 5
Pressure ratio 1:1
Yield at 75 cycles per minute 20.6 liters
Maximum flow at free range 66 L/min
Stubby wall mounted pump tube.
Pressol pneumatic Oil pump model 19185
Technical specifications
- Pressure ratio 1:1
- Suitable for oil up to ISO VG 15 - SAE 5
- Pump tube Stubby for wall mounting
- Maximum flow at free range 66 L/min
- Yield per cycle 275cc
- Yield at 75 cycle per minute 20.6 liters
- Maximum air pressure 8 bar
- Maximum outlet pressure 8 bar
- Air connection 1/4 BSP female
- Exhaust 3/4 BSP bu
- Inlet 3/4 BSP bu
