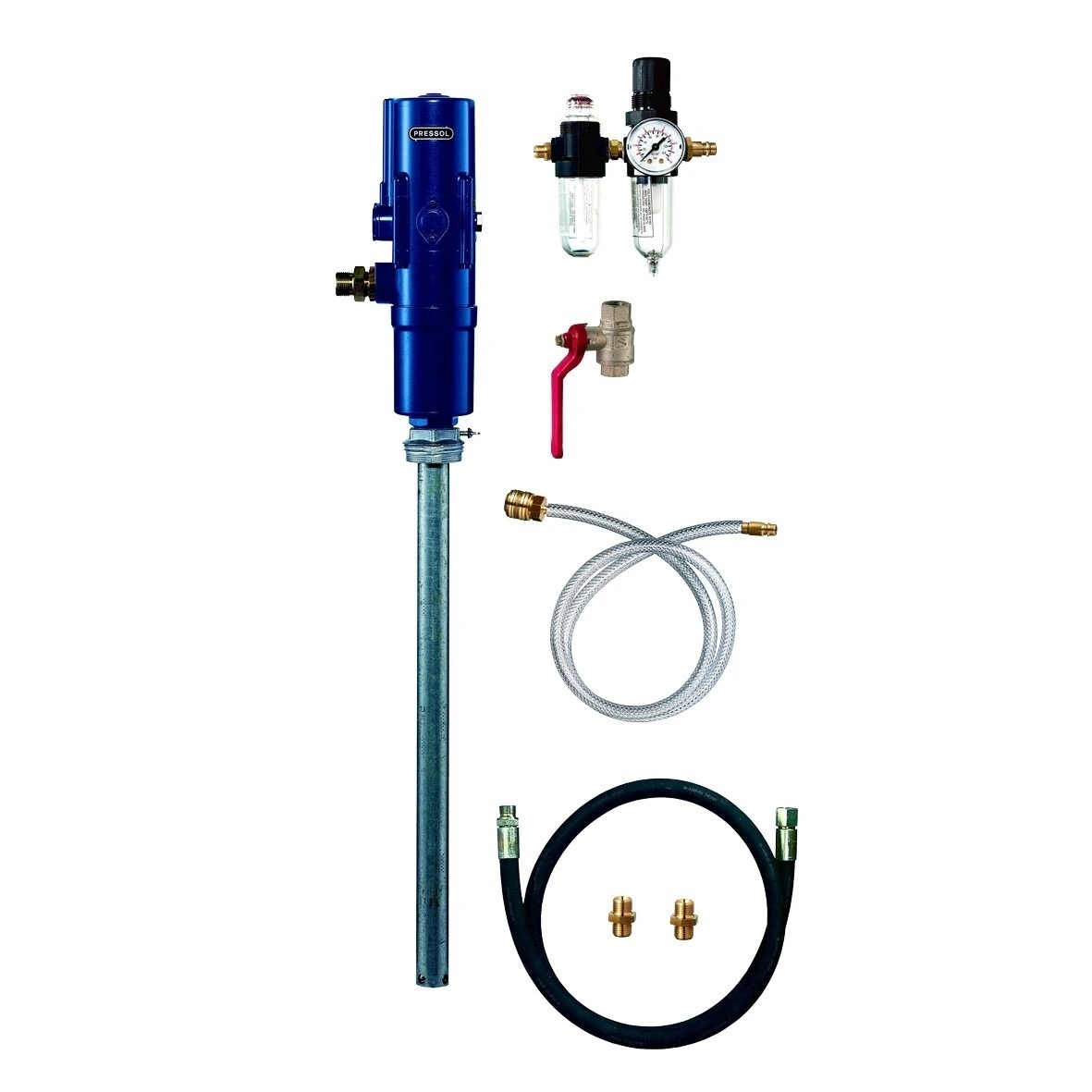

PR OIL PUMP 1:1 TANK MOUNTING INSTALLATION KIT

Pressol pneumatic Oil pump installation set model 19165600

Technical specifications

• Oil pump 1:1 model 19165
• Suitable for oil up to ISO VG 15 - SAE 5
• Length pump tube 1200mm for tank mounting
• Maximum flow at free range 66 L/min
• Yield per cycle 275cc
• Yield at 75 cycle per minute 20.6 liters
• Maximum air pressure 8 bar
• Maximum outlet pressure 8 bar
• Air connection 1/4 BSP female
• Exhaust 3/4 BSP bu
• Compressed air hose 2 m DN10 with quick couplings Euro profile
• Oil drain hose 2 m DN20 with 3/4G bi.bu
• Ball valve 3/4
• Filter Pressure Regulator with Oil Mister 20218950
