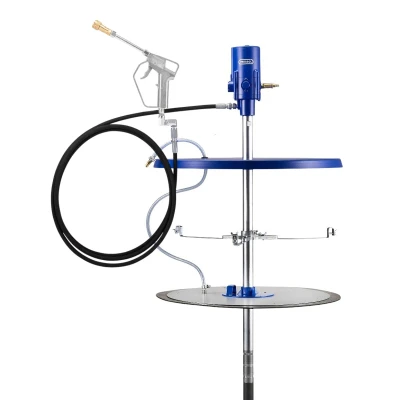

Pressol pneumatic filling pump set for 200KG with 2M-1/2 hose and filling gun with quick connect.
Technical specifications
- Complete with 2 meters of 1/2 hose, filling gun, drum lid, drum bracket, and follower plate.
- Suitable for drum with an internal diameter of 540-590mm
- Pressure ratio 15:1
- Pump tube length 1000mm
- Maximum output at free flow 1.7 L/min
- Output per cycle 13.0cc
- Output at 75 cycles per minute 1.0 liter
- Maximum air pressure 8 bar
- Maximum outlet pressure 120 bar
- Air connection 1/4 BSP female
- Outlet 1/4 BSP male
Attention! This is a filling pump with a maximum pressure of up to 120 bar and therefore not suitable for grease lubrication applications. For lubrication, choose a standard grease pump with a pressure ratio of 50:1 that has a maximum capacity of 400 bar.
Specifications
- SKU 5411094
- HS Code 84671900000
- Country of origin CZ
- Pump Pneumatic
- Brand Pressol
- Material to be pumped Grease
