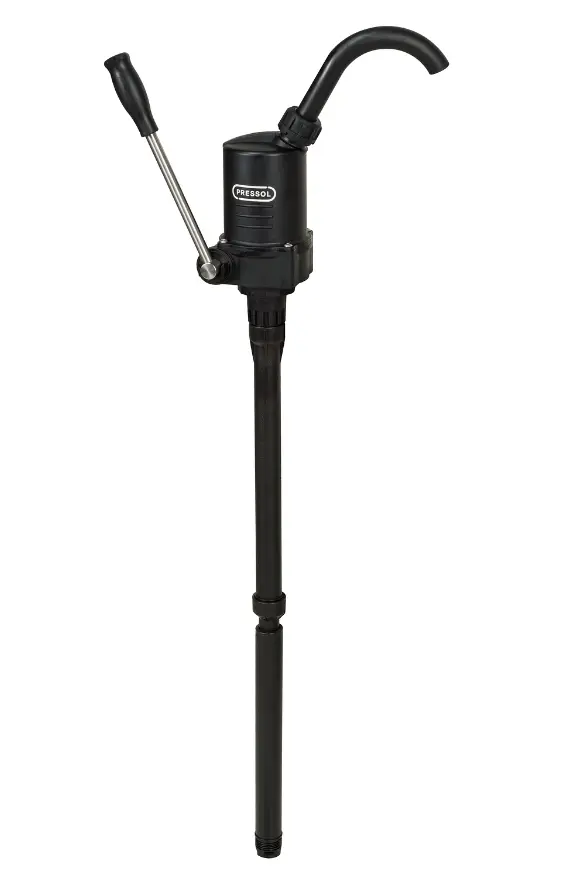

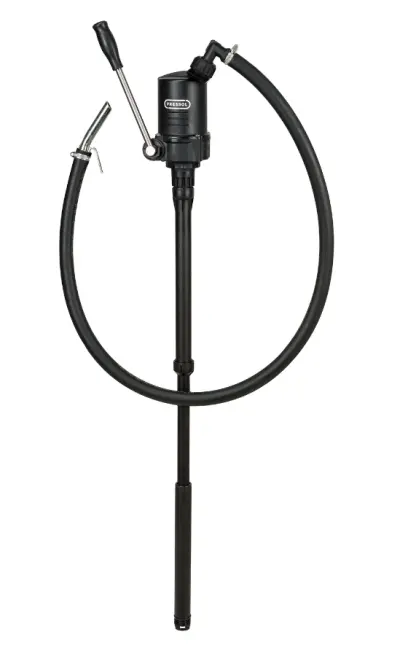

PR VATPOMP VOOR BENZINE 60/220L 13045

In stock

2 in stock

€163.00

Excl. vat

Technical Data

Output at 60 strokes/min (l/min)	24
Media	Special fuels, fuels hazard class AI-III (gasoline), diesel, heating oil, kerosene, low-viscosity mineral oils up to SAE 50, antifreeze for radiators and windshield washer (diluted and concentrated)
Throughput capacity (l/stroke)	0.4
Application	Barrels 60/200/220 l
Long three-part suction tube (mm)	355 - 955
Threaded connection	G 2'' female and M 64x4 female

Material of parts in contact with media
Pump body	ABS + PA6
Seals	FKM
Metal working	Stainless steel

Weight (kg)	1.24

Specifications

Telescopic suction tube (13 094) with suction basket (13 097 003) adjustable in length (from 355 to 955 mm)
Threaded connection G 2'' (13 085) and threaded connection M 64x4 (13 085 003)
Delivery hose complete set (13 045 010) with electrically conductive hose 1500 mm (81 679), steel curved outlet (00 844), hose holder (00 845) and grounding cable with crocodile clamp
Sales packaging in high-quality execution

Special Features

Constant supply
Fully disassemblable - easy to clean
Spare parts, seals, and piston available for 10 years
Easy barrel installation using screws
Can be freely positioned in 30° increments
Optional barrel adapters: (13 085 001) barrel adapter S 56x4; (13 085 002) barrel adapter S 69.5x5.5; (13 085 003) barrel adapter M 64x4 female; (13 085 006) barrel adapter S 64x5
5-year warranty (excluding wear parts)
Telescopic suction tube, flexible length (13 094)
A safe solution for gas explosion hazardous areas and suitable as support for gasoline fuels.
