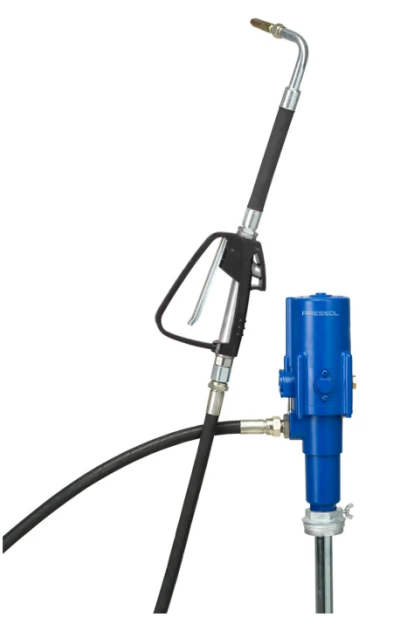

PR OIL PUMP 3:1 200L WITH HOSE AND GUN 19241390

Pressol pneumatic oil pump set model 19241390

Complete with 4 meter hose and gun with 90° outlet 1/2"G 19718954

 For pumping engine, transmission and hydraulic oil.

Suitable for oils up to SAE 90

Ideal for direct connection to pipe systems up to 70 m

Easily combined with multiple hose reels

Pressure ratio 3:1

Output at 75 cycles per minute: 5.2 liters

Maximum output at free flow: 22 L/min

Pump tube length 670 mm for 60 L drum

 Technical specifications

• Oil pump model 19235
• Pressure ratio 3:1
• Suitable for oils up to SAE 90
• Pump tube length 670 mm for 60 L drum
• Maximum output at free flow: 22 L/min
• Output per cycle 70 cc
• Output at 75 cycles per minute: 5.2 liters
• Maximum air pressure 8 bar
• Maximum discharge pressure 24 bar
• Air connection 1/4 BSP (female)
• Outlet 1/2 BSP (male)

Delivery includes

• Oil hose 1/2" 4 m
• Oil gun with 30° outlet 1/2"G 19718
