TUBE PA 12HL 4x1 FILLED
SKU
1142528

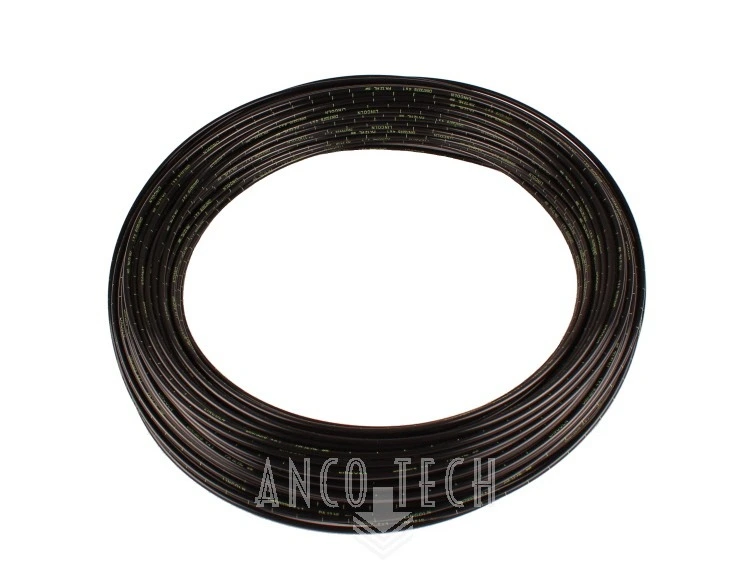

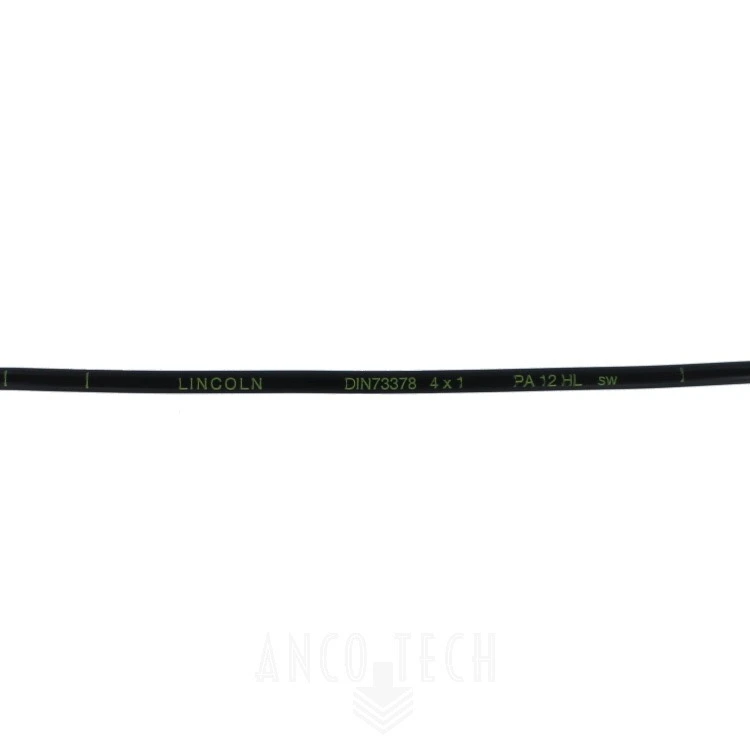

Polyamide tube PA12HL 4x1 grease filled
To be used in automated lubrication applications.
Price and purchase per meter.
Stock quantity: 1352
€3.36
Polyamide tube PA12HL grease filled 4x1
| Polyamide tube PA12HL grease filled | |
| DIN | 73378 |
| Material | Polyamide PA12HL black |
| Operating pressure | 89 bar |
| Bursting pressure | Min. 210 bar at 23°C |
| Minimum bendradius | 50mm |
| Temperature range | 40°C / 120°C |

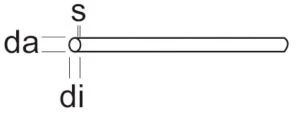

| Inner diameter di | 2.0mm |
| Outer diameter da | 4.0mm |
| Wall thickness s | 1.0mm |
| Lincoln Reference | 504-36061-7 |
