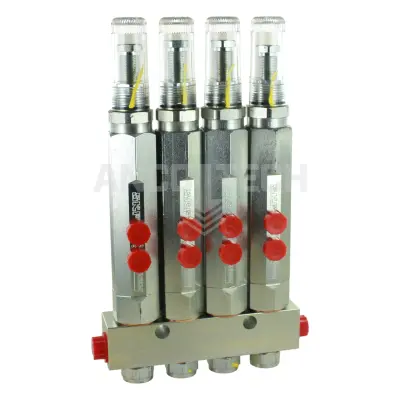

Lincoln SL-6 Manifold Injector 85880-4 – Four-point injector for precise central lubrication
The Lincoln SL-6 85880-4 combines four individual injectors into a single robust manifold. Each injector element operates independently and delivers an exact amount of lubricant per cycle. This makes the injector particularly suitable for lubrication systems with multiple bearings or sliding points that need to be serviced simultaneously.
Technical Specifications
| Feature | Specification |
|---|---|
| Product Name / Model | Lincoln SL-6 Manifold Injector – 85880-4 |
| Number of Injectors | 4 outlets |
| Operating Type | Single-line progressive |
| Lubricant | Grease or oil up to NLGI-2 |
| Operating Pressure | 100 – 350 bar (1500 – 5000 psi) |
| Discharge Volume per Cycle | approx. 0.2 – 1.0 cm³ per outlet |
| Inlet | 1/8" NPT(F) |
| Outlet | 1/8" NPT(F) (per injector) |
| Material | Hardened steel |
| Temperature Range | −25 °C to +120 °C |
| Control | Optional with visual stroke indicator |
Specifications
- SKU 1068804
- HS Code 84799070
- Country of origin US
- Brand Lincoln
- Injector parts Injector
- Injector type 1103
