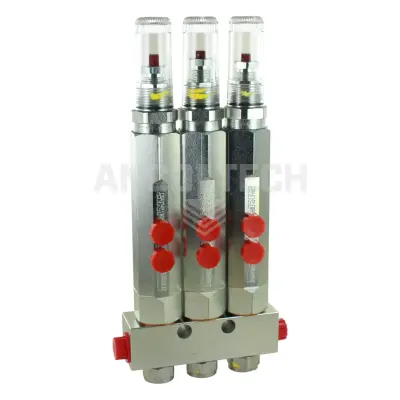

Lincoln SL-6 Manifold Injector 85880-3 – Compact Three-Way Injector for Precise Lubrication
The Lincoln SL-6 85880-3 combines three injectors into one compact manifold. This makes it particularly suited for applications where multiple lubrication points are in close proximity. Each dosing element delivers an accurate amount of lubricant per cycle, ensuring consistent lubrication and extended life of bearings and shafts.
Technical Specifications
| Feature | Specification |
|---|---|
| Product Name / Model | Lincoln SL-6 Manifold Injector – 85880-3 |
| Number of Injectors | 3 outlets |
| Lubricant | Grease or oil up to NLGI-2 |
| Operating Pressure | 100 – 350 bar (1500 – 5000 psi) |
| Volume Dispensed per Cycle | Approx. 0.2 – 1.0 cm³ per outlet |
| Inlet | 1/8" NPT(F) |
| Outlet | 1/8" NPT(F) (per injector) |
| Material | Steel with corrosion-resistant finish |
| Temperature Range | −25 °C to +120 °C |
| Mounting | Directly on distribution line or via bracket |
| Control | Stroke indicator available as an option |
Specifications
- SKU 1068803
- HS Code 84799070
- Country of origin US
- Brand Lincoln
- Injector parts Injector
- Injector type 1103
