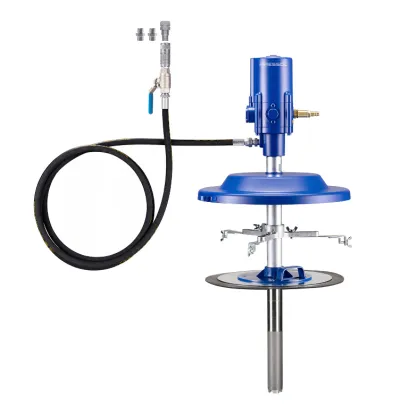

Pressol pneumatic filling pump set for automatic lubrication systems.
Suitable for automatic lubrication systems from, among others:
- Lincoln
- SKF
- ILC
- Dropsa
- Bekamax
- Groeneveld Twin 3.1 pumps
Technical specifications
- Complete with 4 meter 1/2 hose and ball valve with quick coupling.
- Filling coupling for pump with adapters M22x1.5 & M20x1.5
- Suitable for 25kg drum with internal diameter Ø310-335mm
- Pressure ratio 10:1
- Maximum output at free discharge 2.0 L/min
- Output per cycle 22.0 cc
- Output at 75 cycles per minute 1.65 liters
- Maximum air pressure 8 bar
- Maximum outlet pressure 80 bar
- Air connection 1/4 BSP bi
Attention! This is a filling pump with a maximum pressure up to 80 bar and therefore not suitable for pumping-through (feed-through) applications. For feed-through choose a standard grease pump with a pressure ratio of 50:1 which has a maximum capacity of 400 bar.
Specifications
- SKU 5419504
- HS Code 84671900000
- Country of origin CZ
- Pump Pneumatic
- Pressol Reference 19 000 504
- Brand Pressol
- Material to be pumped Grease
