SL1 GREASE MANIFOLD 81770-1
SKU
1060435

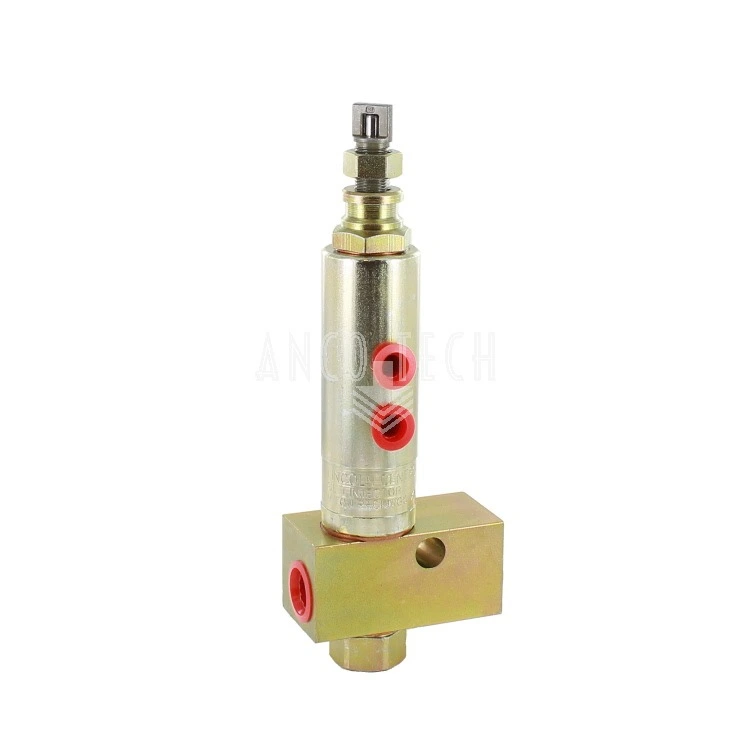

Lincoln Centro-Matic SL1 Grease manifold model 81770-1 Heat resistant
Suitable for lubrication systems with high pressure single tube principle.
Output of every injector is adjustable between 0.131-1.31cc per pump cycle.
Stock quantity: 4
€224.18
Lincoln Centro-Matic Grease injector SL1 Heat resistant | |
Model | 81770-1 |
Material | Zinc plated |
Amount of injectors | 1 |
Connection outlet injector | 1/8 NPTF |
Connection inlet manifold | 3/8 NPTF |
Height injector | 179,4 mm |
Length manifold | 63 mm |
Output adjustable per outlet | 0,131-1.131 cc per stroke |
Standard operating pressure | 172 bar |
Minimum operating pressure | 127 bar |
Maximum operating pressure | 241 bar |
Temperature range | 176°C |
Lincoln Reference | 81770-1 |
