QLS 401 GREASE PUMP 24V + TIMER + LOW LEVEL SIGNAL

SKU
1041635

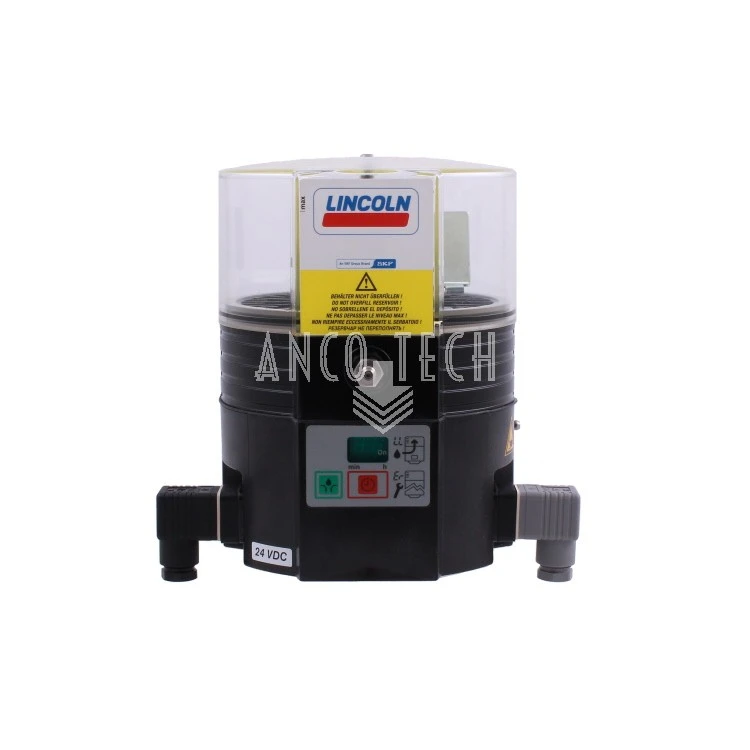

Lincoln QLS 401 grease pump 1 Liter 24V with timer and low level signal

  • Provided with a progressive divider 1 to 8 lubrication points
  • Suitable for grease to NLGI 2
  • Supply voltage 24VDC
  • Maximum pressure 205 bar
  • Protection class IP65
  • Temperature -25 to 70°C

To connect the lubrication tubes to the manifold, the correct couplings and plugs must be ordered. These are not supplied as standard. See related products.



Stock quantity: 1
€1,368.04
Verzending door DHL

Orders placed on workdays before 15:30 will be shipped the same day.

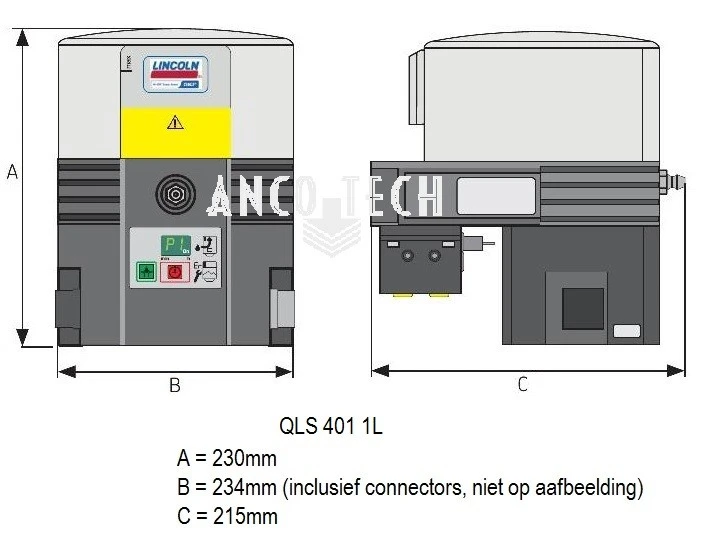

Lincoln Quicklub pump QLS 401
Model  P401-SSV 8-V- 24DC-1XL-2A1.1-S4
For lubricant Grease to class NLGI-2
Manifold SSV 8
Supply voltage 24V DC
Reservoir capacity 1 Liter
Low level signal Yes

Electrical connection

Left side, power supply

Right side, low level signal & error message

Connector(s) Square Form A DIN 175301-803
Timer  Yes
Lincoln Reference P40141411114
More Information
Power supply24V
