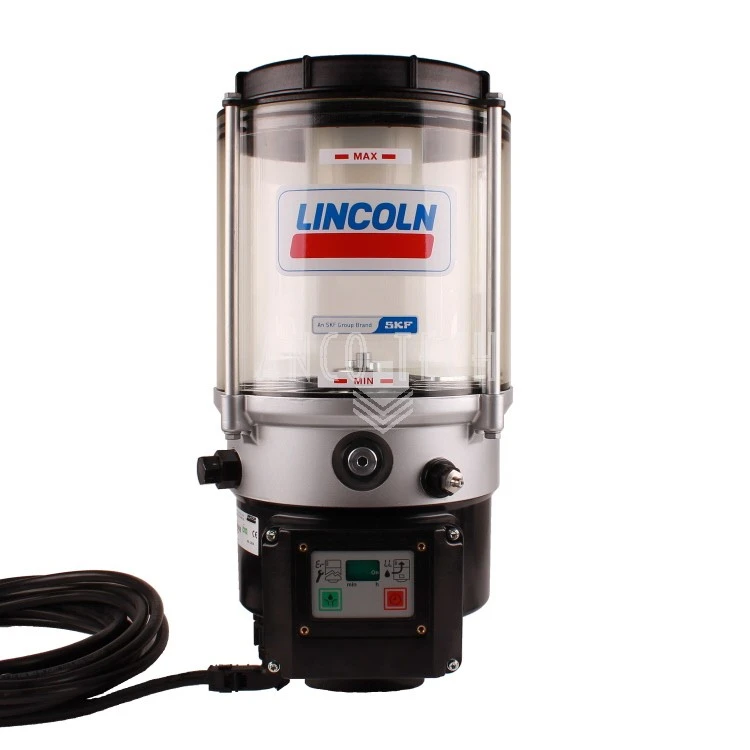

Centro-Matic single-line pump suitable for use with Centro-Matic injectors type SL-41, 42, 43 & 44
- Suitable for oil and liquid grease up to NLGI 00
- Standard fitted with 3 pump elements K7, with a total output of 24.6 cc/min.
- Pump element connection 1/4"G
- Protection class IP 6K9K (NEMA 4X)
- Temperature -40 to 70°C
- Monitoring / pump time 30 minutes
- Maximum output per pump cycle 738 cc
Specifications
- SKU 1041535
- HS Code 84135069
- Country of origin CZ
- Lincoln Reference 645-41198-9
- Maximum pressure (bar) 320
- Pump Electric
- Model P653S- 4YLBO-3Z7-24-1A7.16-AS22-SE
- Connector Bajonet 7 polig met 10 meter kabel
- Electric connections Linkerzijde, Voeding, Laag niveau controle, Foutmelding & handbediening met verlichte drukknop
- Brand Lincoln
- Pump type P653
- Suitable for grease up to class NLGI-00
- Reservoir type Plastic with screw cap
- Power supply 24V
- Material to be pumped Oil
- Pump element(s) 1031
