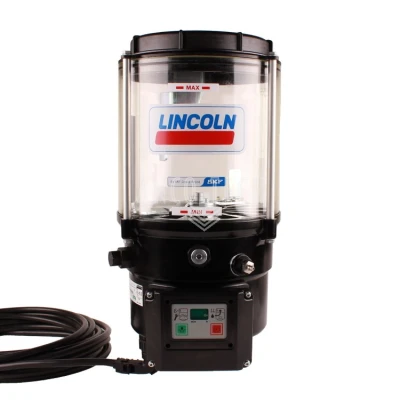

Centro-Matic single-line pump suitable for use with Centro-Matic injectors type SL-1, 11, 32, 33 & SL-V & XL
- Standard fitted with 3 pump elements K7, with a total output of 12.0 cc/min.
- Pump element connection 1/4"G
- Protection class IP 6K9K (NEMA 4X)
- Temperature -40 to 70°C
- Monitoring / pump time 20 minutes
- Maximum output per pump cycle 240 cc
We recommend using a relief valve for each pump element. Click here for an overview of relief valves.
Specifications
- SKU 1045016
- HS Code 84135069
- Land van herkomst CZ
- Lincoln Referentie 645-41064-4
- Maximale werkdruk (bar) 320
- Pomp soort Electric
- Model P603S- 4XLBO-3Z7-24-1A7.16-S17-SE-UL
- Connector Bajonet 7 polig met 10 meter kabel
- Elektrische aansluitingen Linkerzijde, Voeding, Laag niveau controle, Foutmelding & handbediening met verlichte drukknop
- Merk Lincoln
- Pomp type P603
- Voor smeervet tot klasse NLGI-2
- Reservoir type Plastic with screw cap
- Aansluitspanning 24V
- Te verpompen materiaal Grease
- Pompelement(en) 1031
